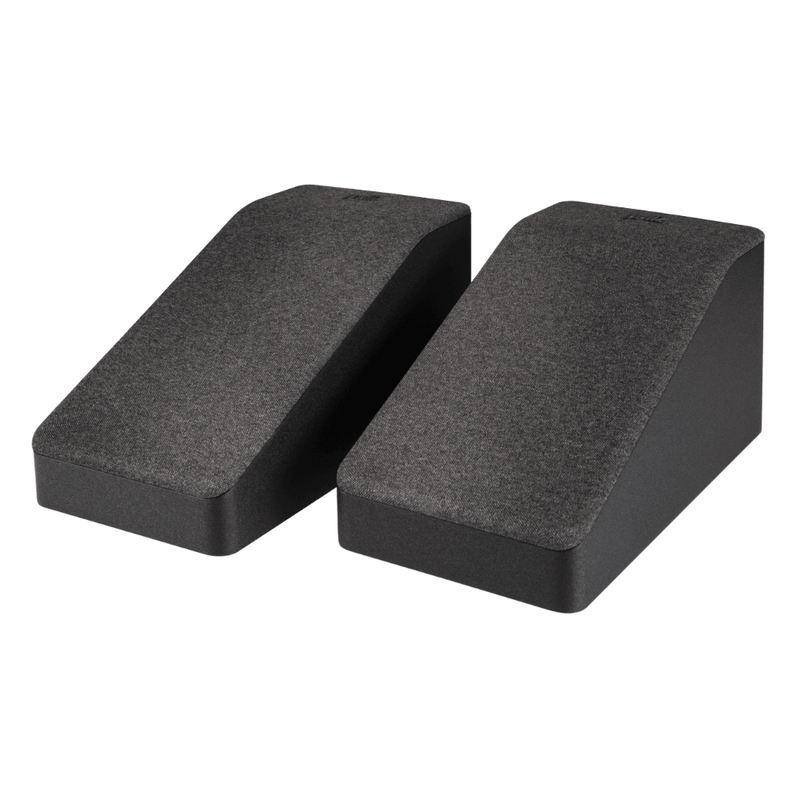

Add R900 height modules to access an IMAX-enhanced world of multidimensional sound. Its unique design means that it can sit atop other Reserve Series speakers or be mounted to the wall, unlocking the Dolby Atmos and DTS:X capabilities of the Reserve Series.
SPECIFICATIONS
Specification
| Speaker Type |
Height Module |
| UOM (Sold As) |
Pair |
TRANSDUCER
| Tweeter |
0.75" Pinnacle Ring Radiator |
| Mid-range/Mid-bass |
- |
| Woofers |
4” Turbine Cone |
| Overall Frequency Response |
50 – 50kHz (when wall mounted) |
| Frequency Response (-3dB limits) |
70 – 32kHz (when wall mounted) |
| Recommended Amplifier Power |
45 - 100W |
| Amplifier Output Compatibility |
8Ω / 6Ω / 4Ω |
| Minimum Impedance (ohms) |
4.2Ω |
| Sensitivity (2.83V/1m) |
85.5dB (when wall mounted) |
CROSSOVER
| Tweeter/Mid-range Crossover Frequency |
2100 |
| Mid-range/Mid-bass Crossover Frequency |
- |
MEASUREMENTS
| Product Dims W x H x D (Includes width of feet) |
166 x 158.3 x 320mm
6.5 x 6.2 x 12.6 in |
| Product Weight (each) |
6.6 lbs/3 kg |
| Shipping Weight |
16 lbs/7.3 kg |
CABINETRY
| New CRC (Mid-Range Enclosure Type) |
- |
| Mid-Bass / Woofer Enclosure Type |
Sealed |
| Available Finishes |
Black / Walnut / White |
| Feet |
Pads |
| Wall-Mountable (keyhole slots) |
Yes |
| Binding Posts: Nickel-plated 5-Way |
Single |
