Details
Highlights
- Wide Frequency Response: The speaker offers a frequency response of +/-3 dB from 170 Hz to 10 kHz and a frequency range of -10 dB from 160 Hz to 15 kHz, ensuring clear and balanced audio reproduction across the specified range.
- 360° Dispersion: With a nominal dispersion of 360° H x 50° V, the speaker provides uniform sound coverage in all directions, making it suitable for various applications.
- High-Pass Filter: The recommended 60 Hz high-pass filter helps in eliminating unwanted low-frequency signals and improves the overall audio performance.
- Overload Protection: The speaker features PTC (Positive Temperature Coefficient) overload protection to safeguard against excessive power levels.
- High Power Handling: The long-term power handling of 280 W (320 W peak) ensures the speaker can handle higher power outputs without distortion.
Bose® Environmental Speaker

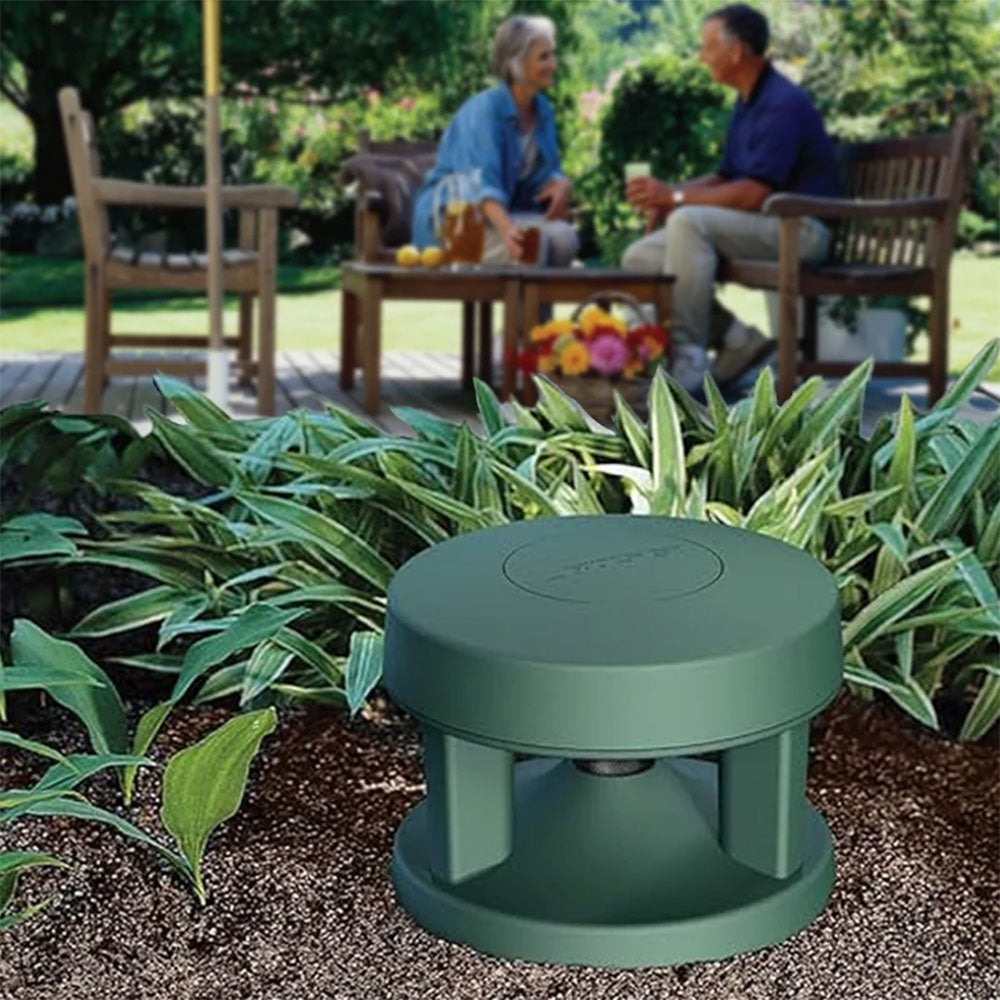

Experience reliable and high-quality outdoor audio with the Bose® Environmental Speaker. This weather-resistant speaker offers wide dispersion and overload protection, making it ideal for outdoor installations.
| Frequency Response (+/-3 dB): | 170 Hz - 10 kHz |
| Frequency Range (-10 dB): | 160 Hz - 15 kHz |
| Nominal Dispersion: | 360° H x 50° V |
| Recommended High-Pass Filter: | 60 Hz high-pass filter |
| Overload Protection: | PTC |
| Long-Term Power Handling: | 280 W (320 W peak) |
| Sensitivity (SPL / 1 W @ 1 m): | 87 dB SPL |
| Maximum SPL @ 1 m: | 100 dB SPL (106 dB SPL peak) |
| Nominal Impedance: | 4 Ω (transformer bypassed) |
| Transformer Taps (70/100 V): | 10 W, 20 W, 40 W, 80 W |

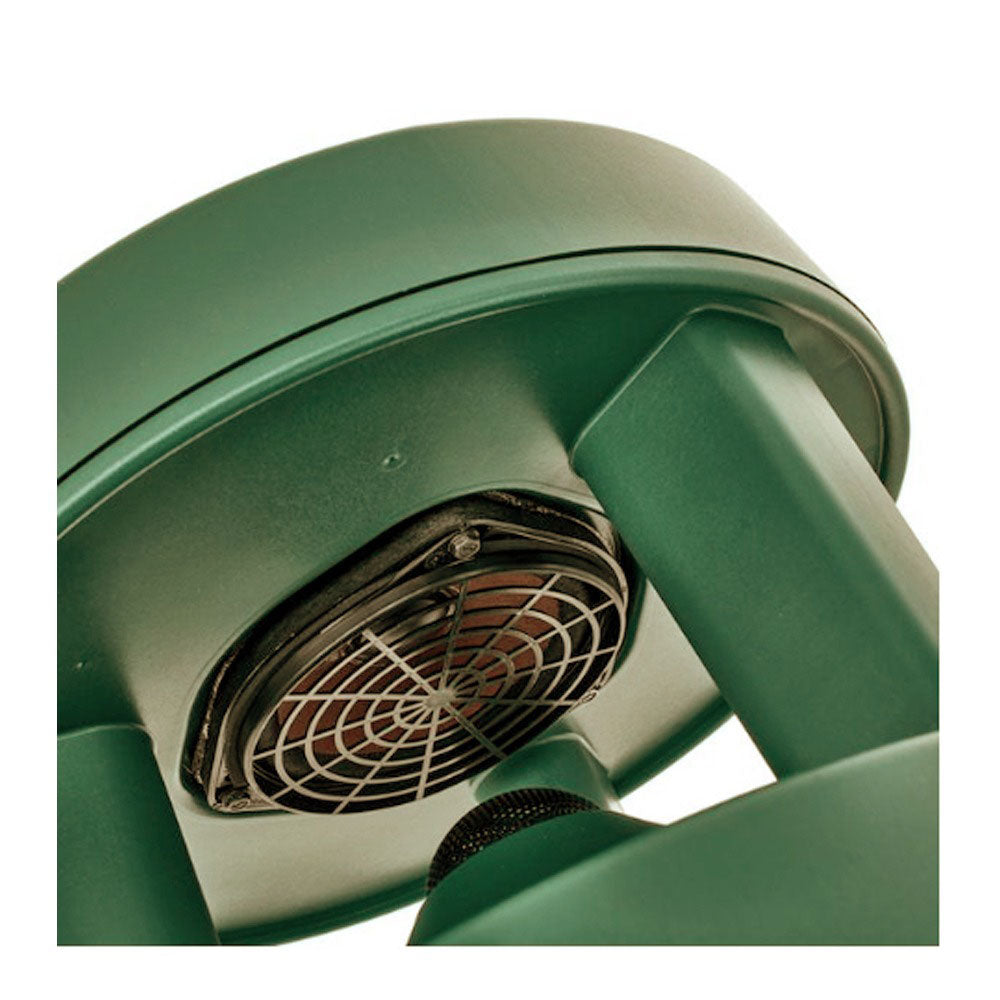

| Transducers: | 4.5" (114 mm) Bose® environmental driver |
| Enclosure: | Glass-reinforced polypropylene, textured |
| Environmental: | Outdoor per IEC 529 IP35 |

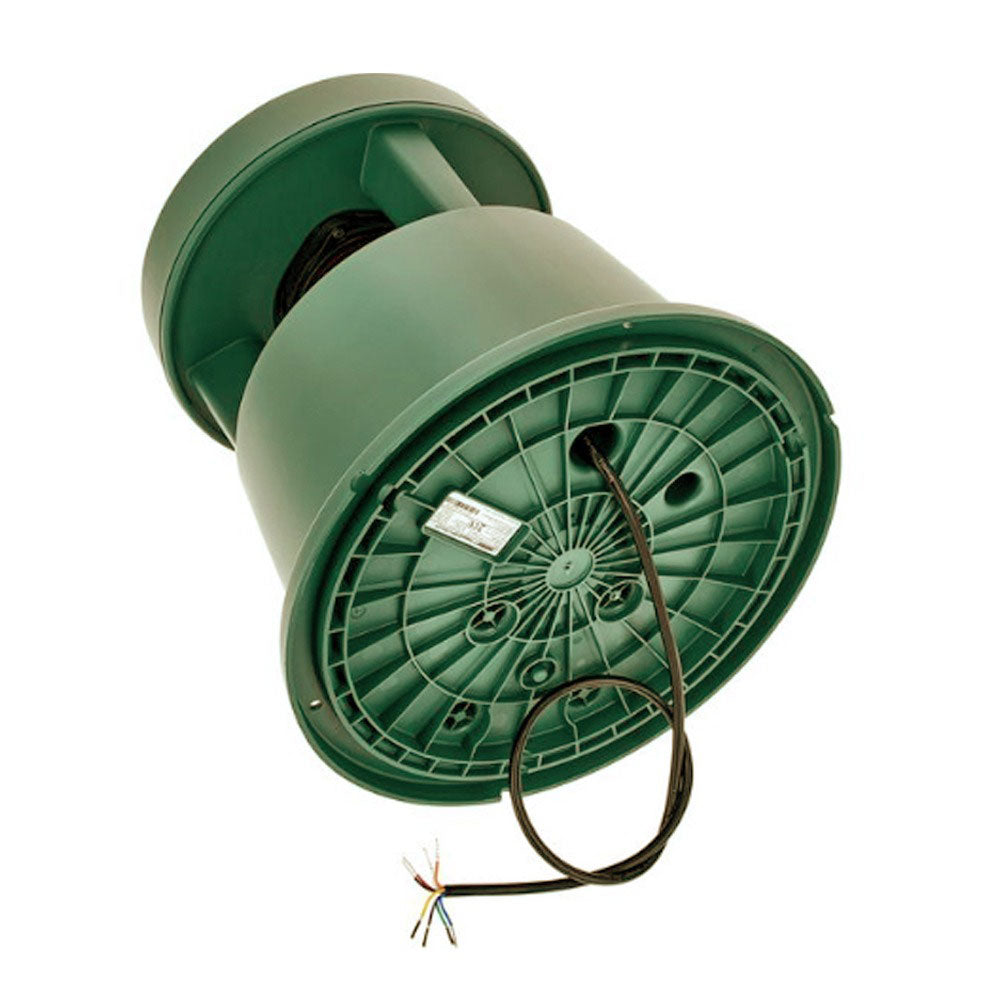

| Connectors: | External multi-wire cable with wire nuts included |
| Suspension / Mounting: | Three (3) #10 (M4) holes in the base. Three #10 M4 screws required |
| Dimensions: | Diameter: 14.5" (368 mm), Height: 14.9" (379 mm) |
| Net Weight: | 14.5 lb (6.6 kg) |
| Shipping Weight: | 14.9 lb (6.8 kg) |
| Product Code: | Green040151 |
