Details

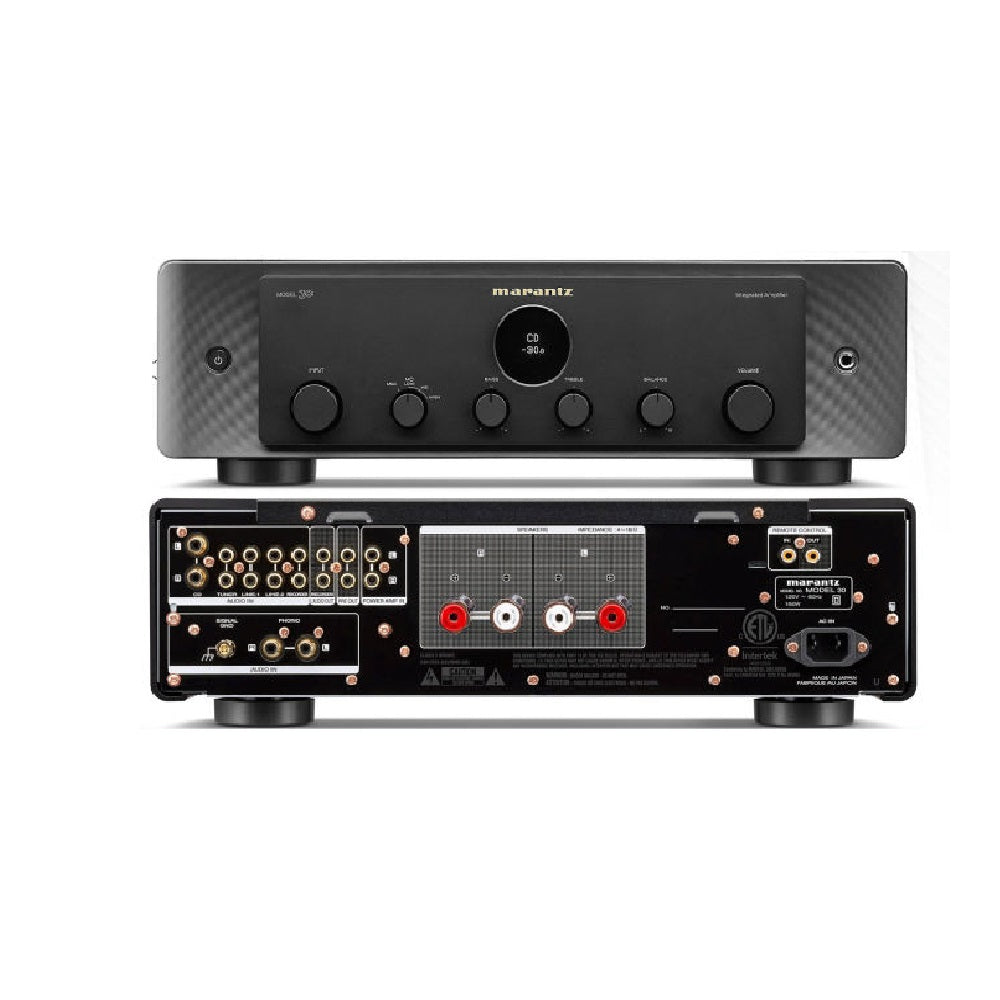

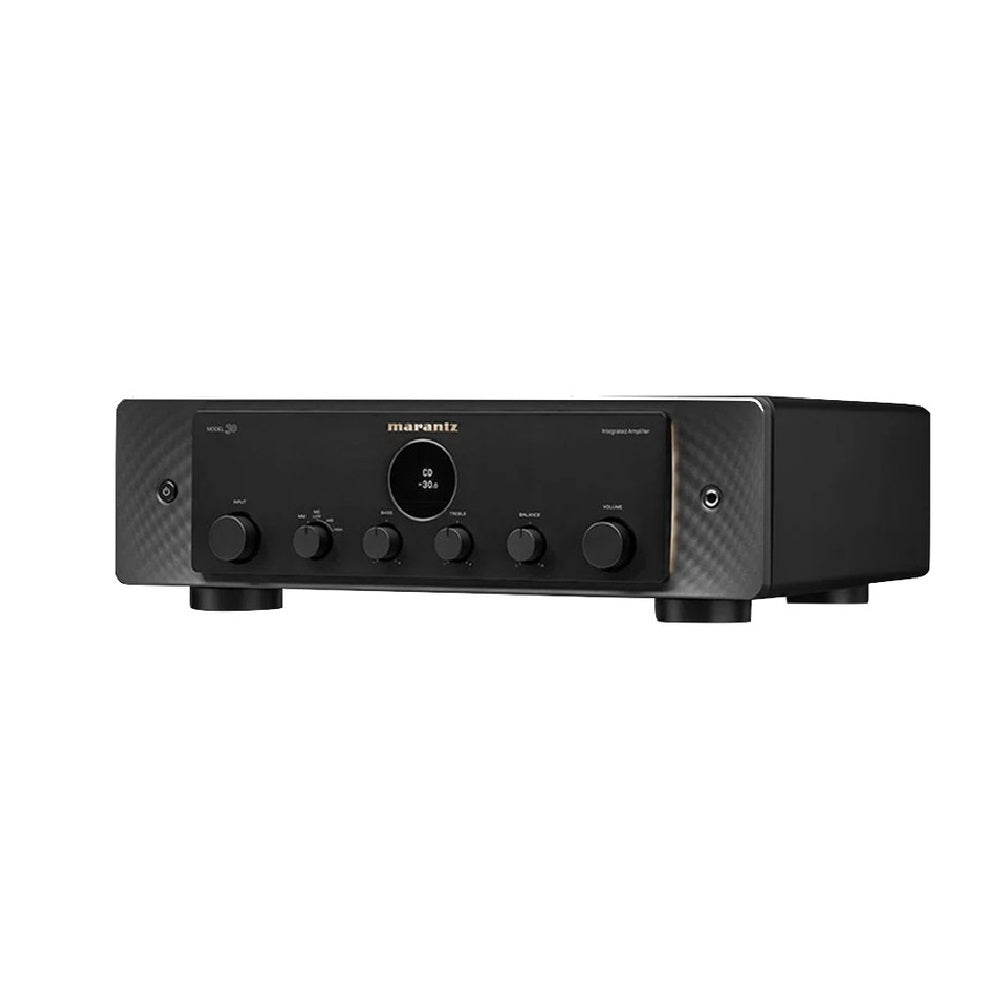

Enjoy enhanced audio quality with your favorite stereo pair of speakers and the Marantz Model 30 Integrated Amplifier. It outputs up to 100W per channel at 8 ohms and features a dedicated phono input among its seven total stereo RCA inputs. The phono input features a switchable impedance to accommodate turntables with either MM or MC phono cartridges. The aluminum and steel chassis design helps the amplifier resist external interference.
Product specifications
RATED OUTPUT POWER: 100WPC @ 8 Ohms / 200WPC @ 4 Ohms.
POWER AMP TECHNOLOGY: Class D Hypex NC500/SMPS600
POWER TRANSFORMER: Toroidal with Case
VOLUME: Via panel knob or via remote
PANEL CONTROLS: Bass / Treble / Balance
SOURCE-DIRECT MODE: Yes
FREQUENCY RANGE: 5-50kHz (no +/- range provided)
THD: 0.005% (1kHz @ 8 Ohms)
DAMPING FACTOR: 500
INPUT SENSITIVITIES:
Phono MM – 2.3mV @ 39kOhms
Phono MC – 250
CD/Line/Recorder – 220mV @ 13kOhms
Power Amp Input – 1.1V @ 13kOhms
SIGNAL TO NOISE RATIOS:
Phono MM – 88dB
Phono MC – 75dB
CD/Line – 107dB
SIZE (W, H, D):17 x 5.1 x 17 inches (433 x 130 x 432mm)
WEIGHT: 32.6 pounds 14.8kg
POWER CONSUMPTION (FULL LOAD): 130W
POWER CONSUMPTION (STANDBY): 0.2W
