Details

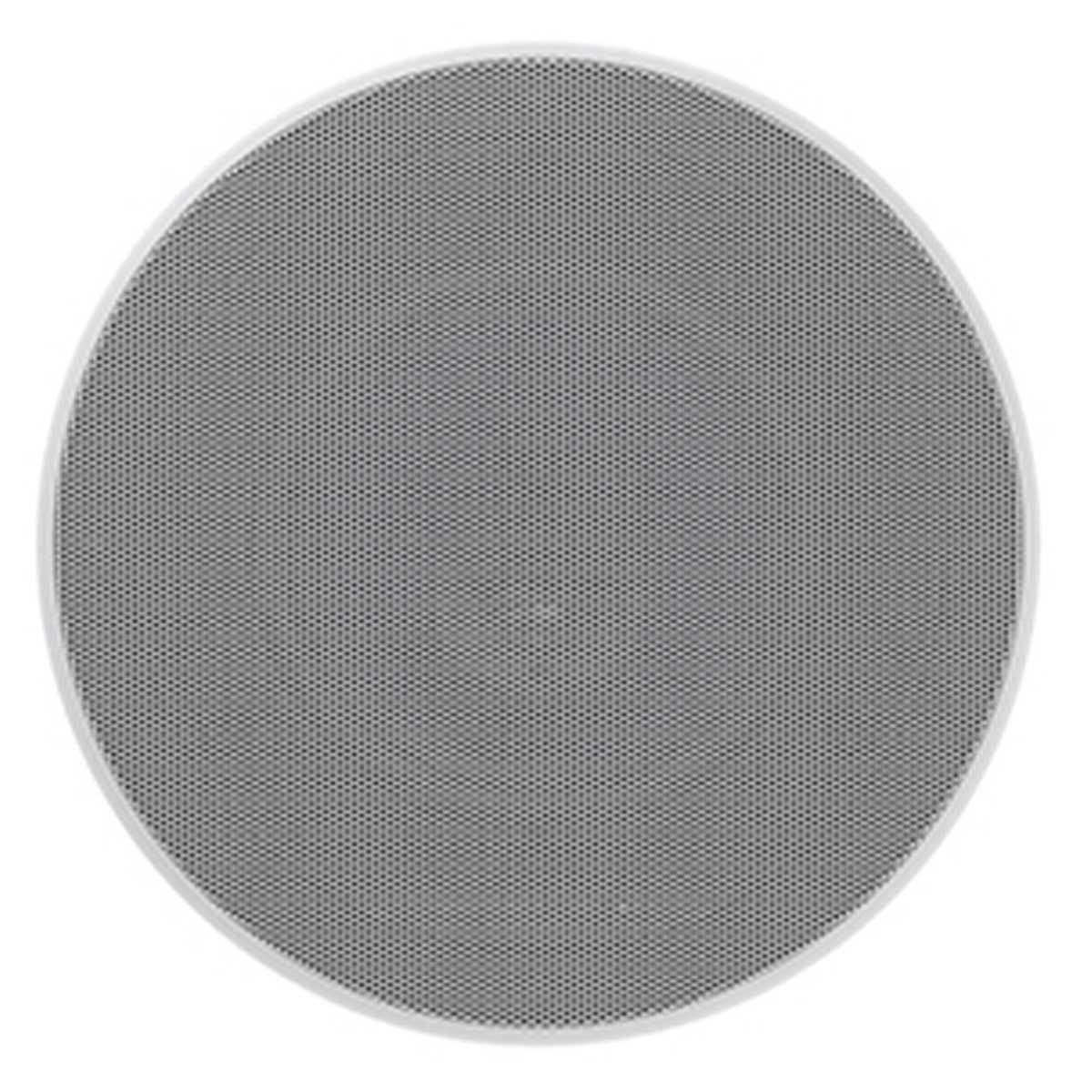

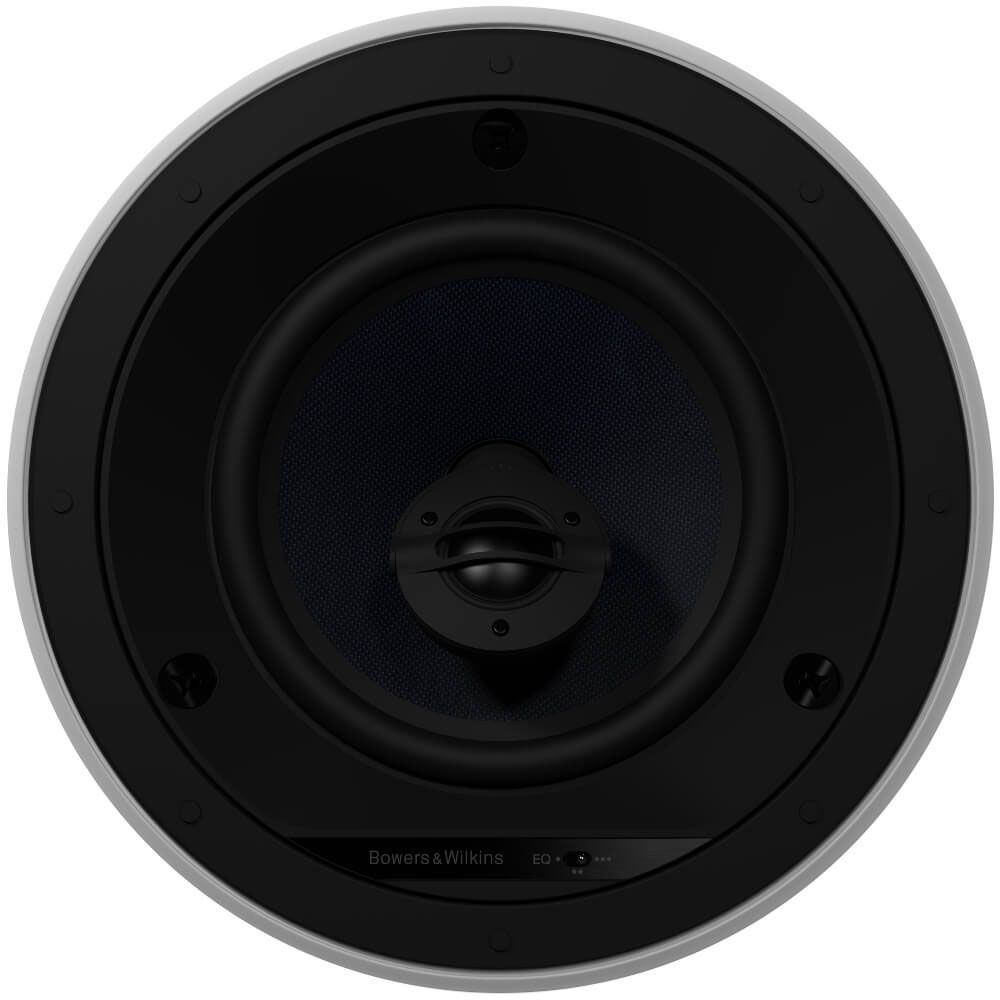

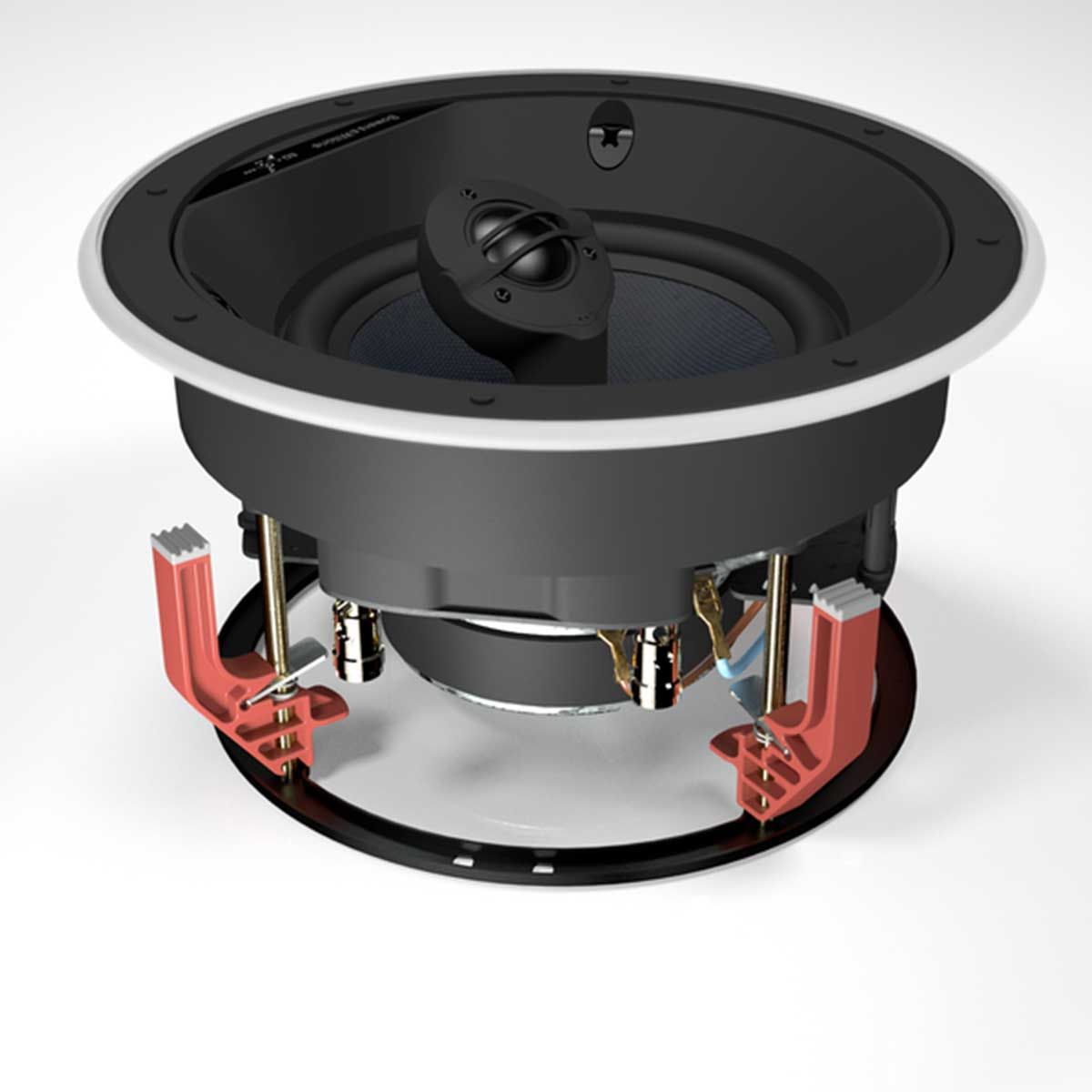

CCM665 is a high-performance ceiling speaker that’s simplicity itself to install and use. A 2-way design, featuring a 150mm (6in) woven glass fiber cone bass/midrange driver and a soft dome tweeter in a neat circular ceiling mount chassis. Incorporating QuickDogs and plug and play functionality is quick and easy to install. A perfect speaker for those indulgent extra locations - the bathroom, the kitchen - that define the real luxury of custom installed audio.
Specifications:
Description: 2-way in-ceiling system
Drive Units
- 1x ø25mm (1in) soft dome tweeter
- 1x ø150mm (6in) black glassfibre cone bass/midrange
Frequency Range (-6dB): 45Hz – 35kHz
Recommended Amp Power: 25 – 130w
Sensitivity SPL (2.83V, 1m): 87dB
Impedance Nominal (min): 8 ohms (4.5 ohms)
Approximate Dimensions:
Frame Dimensions
- Frame Diameter: 9.5 "
- Depth Behind Surface: 5.2 "
Cut-out Dimensions
- Cut-out diameter: 8 "
- Protrusion: 0.2 "
Pre-mount Kit: C6
Recommended Back Box: 6C
Approximate Weight:
- Shipping: 10 lbs
