Details
Highlights
- Compact and Powerful Amplifier: The AH150.4 is a high-voltage Class D Amplifier that delivers an impressive power output of 150W x 4 (70V RMS, one channel driven) or 135W x 4 (70V RMS, all channel driven), providing robust and reliable audio performance.
- Wide Voltage Range: This amplifier operates on both 70V RMS and 100V RMS, offering versatility in voltage options and making it suitable for various audio installations.
- High-Performance Audio: With a frequency response of 100Hz - 15kHz (+0/-3dB) and a high S/N Ratio of >95dB, the AH150.4 ensures accurate and clear sound reproduction, producing crisp highs and impactful lows.
- Flexible Input Options: The amplifier supports both balanced (20kohm) and unbalanced (10kohm) inputs, allowing seamless integration with a wide range of audio sources.
- Switching Power Class D: The AH150.4 features efficient Switching Power Class D technology, ensuring minimal heat generation and higher energy efficiency.

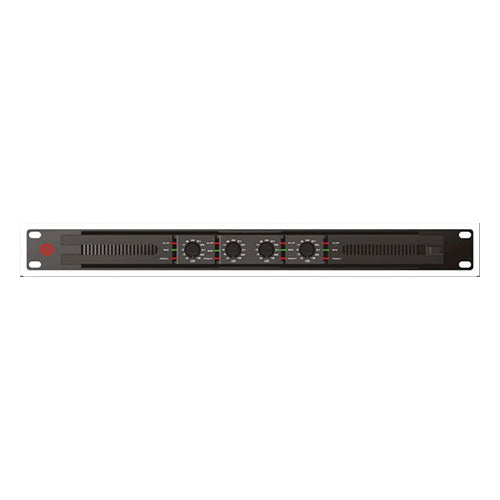

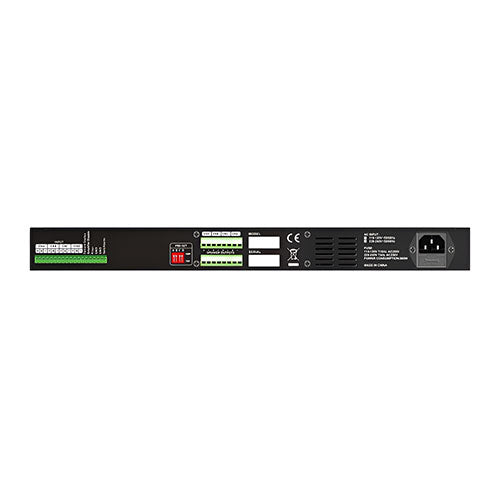

AH500.4 Compact high-voltage Class D Amplifier 480W x 4
Experience superior audio performance with the AH500.4 Compact high-voltage Class D Amplifier. Designed to deliver powerful and clear sound, this amplifier is the perfect choice for professional audio installations, conference rooms, retail spaces, and more.
| Power (70V RMS) One Channel Driven: | 480W x 4 |
| Power (70V RMS) All Channel Driven: | 400W x 4 |
| Power (100V RMS) One Channel Driven: | 480W x 4 |
| Power (100V RMS) All Channel Driven: | 400W x 4 |
| Input Sensitivity: | 0.9 - 1.1V (+0/-1dBv) |
| Input Impedance: | 20kohm Balanced or 10kohm Unbalanced |
| Frequency Response: | 100Hz - 15kHz (+0/-3dB) |
| Voltage Gain (100V): | 40 (+0/-1dB) |
| S/N Ratio: | >95dB |
| Power/Output Circuitry: | Switching Power Class D |
| Power Supply: | AC: 110-120V or 220~240V 50/60Hz |
| Dimensions (W x H x D): | 483 x 360 x 44 mm |
| Weight: | 6.3kg |
The AH500.4 Compact high-voltage Class D Amplifier sets a new standard in audio performance. With its powerful output and wide voltage range, this amplifier delivers exceptional sound quality that will elevate your audio experience to a new level.
Whether you're setting up a commercial audio system or a sophisticated home audio setup, the AH500.4's flexible input options and efficient power handling make it an ideal choice for various applications.
Upgrade your audio system with the AH500.4 Compact high-voltage Class D Amplifier and enjoy crystal-clear sound and powerful performance that will impress even the most discerning audio enthusiasts.
