RCF UP 2162 Rack Mount Dual-Channel Digital Power Amplifier, 2 × 160W, 4 Channels

Features

• Power Amplifier designed for the transmission of announcements and / or musical programs

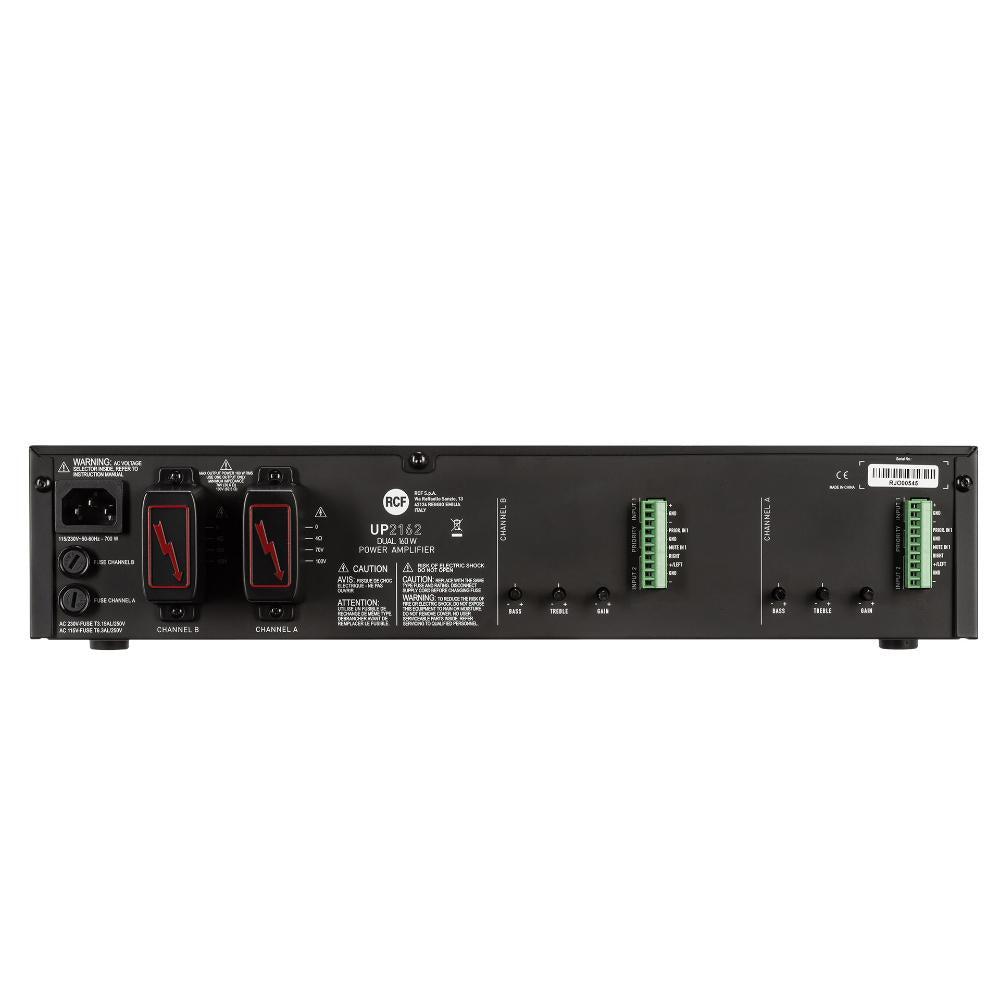

• Main input on removable connector
• AUX Input for music sources removable connector
• Controls for treble, bass and Gain on the AUX Input
• Main Input can have priority over the Aux Input (by means of an external command linked to the removable connector)
• Output speaker available either for low impedance loudspeakers (min. 4 O) or 100 – 70 V constant voltage line

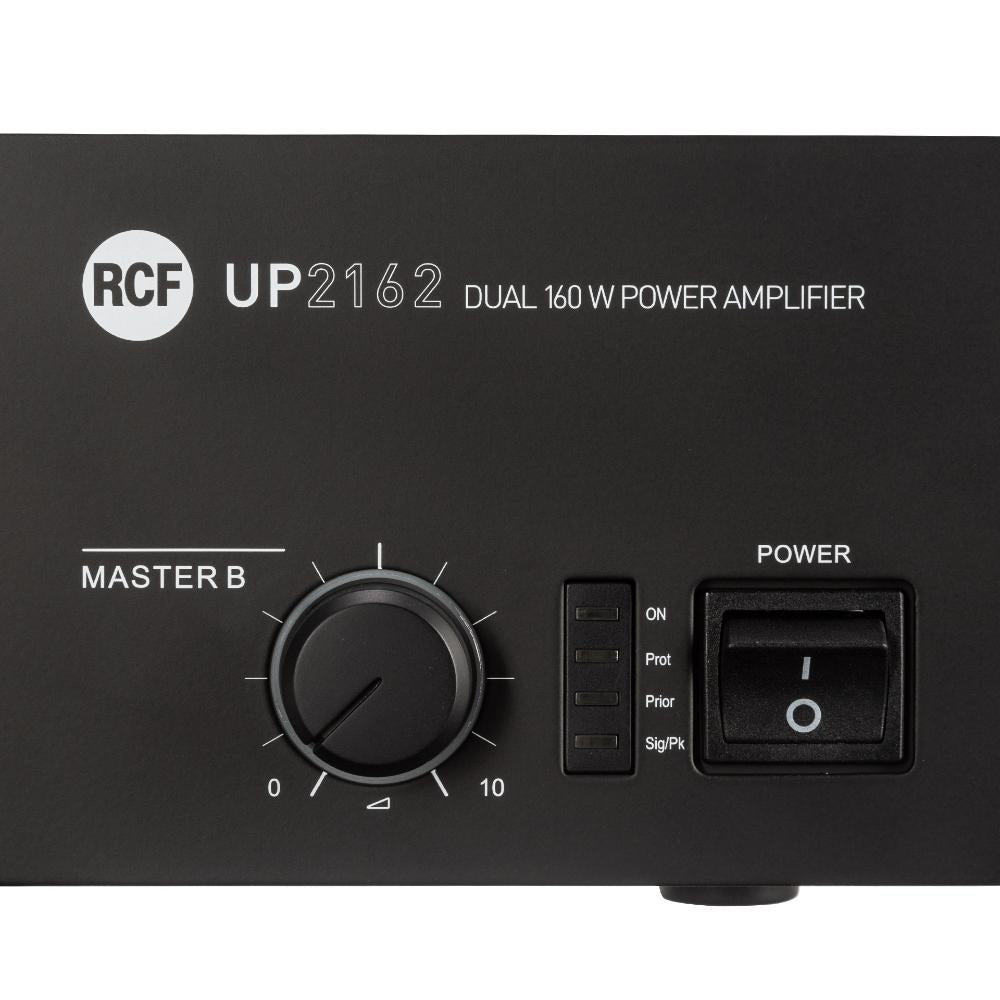

• Front panel LEDs indicate the device state (ON, PROT), the priority activation (PRIOR) and the signal/peak level (SIG/PK)

UP 2162 is a device with 2 separated and independent 160 W amplifiers, each having 2 audio inputs, of which one with priority function through a closing contact. Both the audio inputs are at ‘line’ level: for per-amplified signals or music sources (e.g. CD players, tuners, etc.). The amplifier output is available either for low impedance loudspeakers (min. 4 O) or 100 – 70 V constant voltage line (for loudspeakers having 100 – 70 V transformers). The amplifier is Class D with switching power supply; the overall weight is extremely reduced plus it offe\

rs a wide audio bandwidth quality.
