Highlights
- Versatile Audio Mixing: The RCF F 10XR is a 10-channel mixing console that offers a wide range of input and output options, making it suitable for various audio applications.
- Multiple Input Connections: With 4 XLR inputs, 10 1/4" inputs (4 stereo pairs, 2 mono), and 4 RCA inputs (2 stereo pairs), this mixing console provides flexible connectivity for microphones, instruments, and other audio sources.
- Convenient Gain Control: The F 10XR features a gain range of 0 to -50 dB, with gain selection from 20 dB to -30 dB, allowing precise adjustment for different input sources.
- Compressor and Equalization: Channels 1 and 2 are equipped with single-control compressors, and the input channels feature 2 shelving and 1 generic equalization bands for shaping the audio to your preference.
- USB Audio Interface: The built-in USB Type-B port offers 2-channel I/O and supports sample rates of 44.1 or 48 kHz, enabling easy recording and playback with a computer.

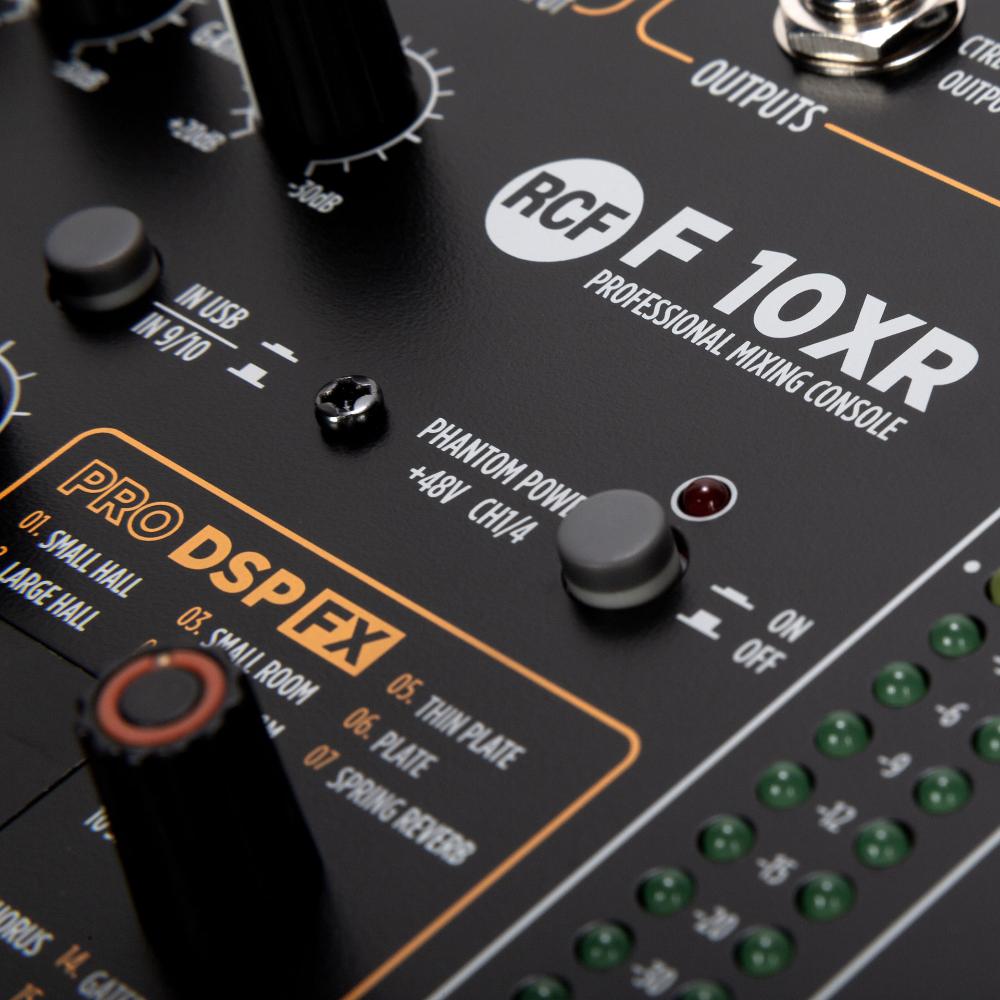

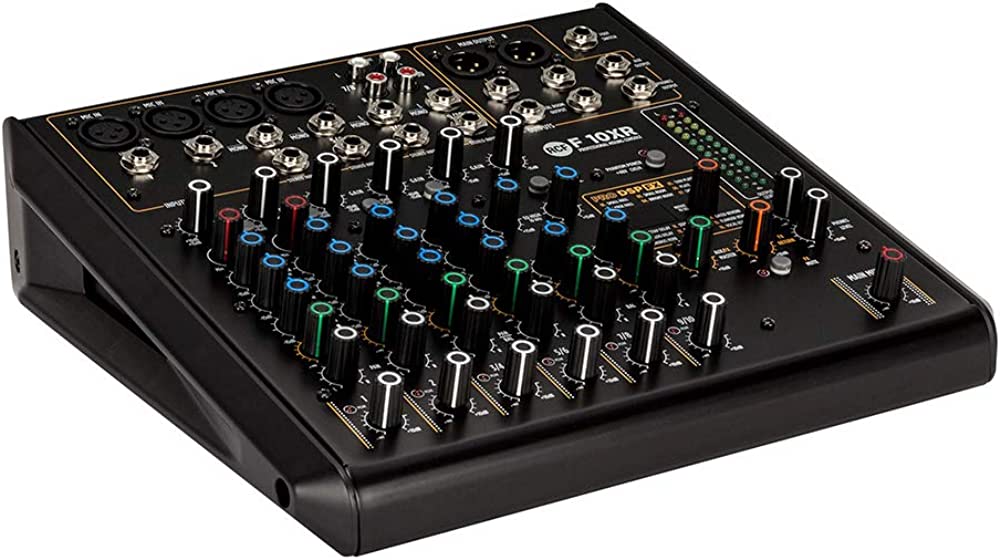

RCF 10 Channel Mixing Console F 10XR
The RCF F 10XR is a versatile audio mixing console designed to meet the demands of various audio applications. With multiple input and output options, precise gain control, built-in compressors and equalizers, and a USB audio interface, this mixer provides professional-level performance and convenience in a compact and durable package.
| Specifications: |
Input Connections: 4 x XLR Inputs, 10 x 1/4" Inputs (4 x Stereo Pairs, 2 Mono), 4 x RCA Inputs (2 x Stereo Pair), 1 x 1/4" Footswitch Input Gain Range: 0 to -50 dB Input Impedance: Mic: 14 Kilohms, Line: 21 Kilohms, Stereo Line: 15 Kilohms Frequency Response: 20 Hz to 20 kHz Compressor: Single-Control Compressors on Channels 1 and 2 Equalization: High: ±15 dB at 10 kHz, Shelving; Mid: ±15 dB at 1250 Hz, Bell; Low: ±15 dB at 100 Hz, Shelving Outputs: 2 x XLR Main Outputs, 2 x 1/4" Main Outputs, 2 x 1/4" CTL Room Outputs, 1 x 1/4" Auxiliary Output, 1 x 1/4" Headphones Output USB Audio: Type-B, 2-Channel I/O, 44.1 or 48 kHz Sample Rate Case Material: Metal Power Requirements: 100 to 240 VAC Power Consumption: 18 W Dimensions (D x H x W): 10.8 x 3.2 x 11.6" / 27.5 x 8.2 x 29.4 cm Weight: 6.2 lb / 2.8 kg |
The RCF F 10XR mixing console offers a range of input and output options, making it suitable for various audio applications. With precise gain control, built-in compressors, and equalization bands, this mixer allows you to shape your audio according to your preferences. The USB audio interface enables easy recording and playback with your computer, making it a versatile tool for audio professionals and enthusiasts alike.
Constructed with a metal case for durability, the F 10XR ensures reliability and longevity. Whether you're setting up a live performance, recording studio, or small venue, the RCF F 10XR provides the functionality and quality you need for an exceptional audio experience.
