Details
Highlights
- Premium Transducer Array: The QSC Acoustic Design Series AD-S6T features a 1-inch silk dome tweeter with a 1-inch voice coil horn-loaded LF transducer and a 6.5-inch weather-resistant paper cone woofer, ensuring exceptional audio performance.
- Wide Frequency Range: Enjoy a broad frequency response from 60 Hz to 20 kHz, delivering rich and accurate sound reproduction across various audio content.
- High Sensitivity: With a sensitivity of 89 dB SPL, these speakers ensure impressive audio output with minimal power input.
- Wide Coverage Angle: The AD-S6T offers a 105° conical DMT™ coverage angle (-6 dB), ensuring even sound distribution throughout the listening area.
- Durable Construction: Crafted with painted ABS polymer and featuring an IP-54 ingress protection rating, these speakers are designed for both indoor and outdoor use, providing long-lasting reliability.

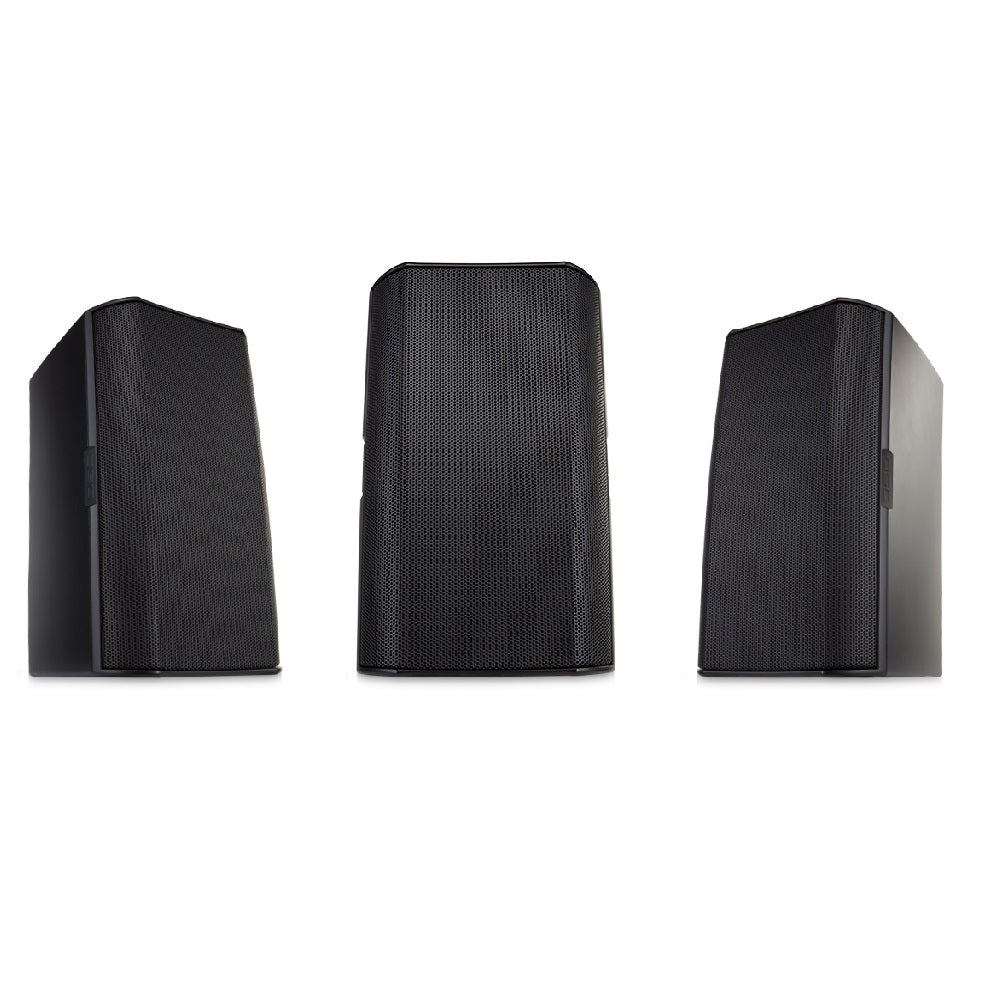

QSC Acoustic Design Two Way Loudspeaker AD-S6T
The QSC Acoustic Design Series AD-S6T offers professional-grade audio quality and versatility. Featuring premium transducers and wide coverage, these speakers deliver exceptional sound performance for various indoor and outdoor installations.
| Effective Frequency Range: | 60 Hz - 20 kHz |
| Rated Noise Power / Voltage: | 150 watts / 35 volts (rms) |
| Broadband Sensitivity: | 89 dB SPL |
| Coverage Angle (-6 dB): | 105° conical DMT™ |
| Maximum Continuous SPL: | 110 dB |
| Maximum Peak SPL: | 116 dB |
| Rated Impedance: | 8 ohms |
| Recommended Amplifier Power: | 300 watts (loudspeaker "program" power) |
| Transformer Taps: | 70 V: 60, 30, 15, 7.5 W and 8Ω bypass, 100V: 60, 30, 15 W and 8Ω bypass |
| HF Transducer: | 1 inch silk dome tweeter / 1 inch voice coil, horn loaded |
| LF Transducer: | 6.5 inch weather-resistant paper cone woofer, 1.5 inch / 38 mm voice coil |
| Input Connector Type: | Euroblock connector with parallel output terminals |
| Enclosure Material: | Painted ABS polymer |
| Grille Material: | Powder-coated aluminum |
| X-Mount Material: | Powder-coated aluminum |
| Ingress Protection: | IP-54 |
| Operating Environment: | Designed |
