Details
Highlights
- Compact Two-Way Design: The QSC AD-S32T Acoustic Design Loudspeaker features a compact two-way, ported enclosure, providing a space-saving solution without compromising on audio performance.
- Weather Resistant Transducers: Equipped with a 3-inch weather-resistant polypropylene cone woofer and a 0.75-inch titanium dome tweeter, this loudspeaker delivers clear and reliable audio even in challenging environmental conditions.
- Wide Frequency Range: Enjoy a wide frequency range from 73 Hz to 20 kHz (-6 dB) and a useable frequency range from 65 Hz to 20 kHz (-10 dB), ensuring detailed audio reproduction for various applications.
- Switchable Impedance: The AD-S32T has a switchable 8-ohm nominal impedance, providing installation flexibility and compatibility with different audio systems.
- Wide Coverage: With a nominal coverage of 100° × 100°, this loudspeaker offers a broad sound dispersion, making it suitable for various sound reinforcement setups.

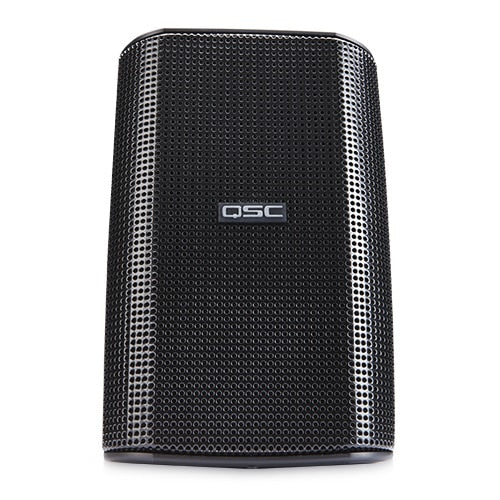

QSC Acoustic Design Loudspeaker AD-S32T
Experience clear and versatile audio performance with the QSC AD-S32T Acoustic Design Loudspeaker. Designed with weather-resistant transducers and a compact two-way enclosure, this loudspeaker delivers reliable sound in a space-saving design.
| Configuration: | Compact two way, ported enclosure |
| Transducers: | Low-frequency - 3-inch (7.6 cm) weather resistant, polypropylene cone woofer |
| High-frequency - 0.75-inch titanium dome tweeter | |
| Frequency Range 1: | 73 Hz to 20 kHz (-6 dB) |
| 65 Hz to 20 kHz (-10 dB) | |
| Maximum Output 2: | Calculated Peak Output - 105 dB SPL |
| Calculated Continuous Output - 99 dB SPL | |
| Nominal Impedance: | 8 ohms switchable |
| Power Rating: | Continuous power handling - 30 W (100 hours IEC) |
| Recommended max amp power - 60 W (loudspeaker "program" power) | |
| Sensitivity: | 85 dB, 2.83 V, 1 m, free space (4 pi) |
| Nominal Coverage: | 100° × 100° |
| Transformers: | Custom low-distortion laminated core, wide-bandwidth design |
| Taps (switch selected): | 70 V: 30, 15, 7.5, 3.8 W / 8Ω bypass |
| 100 V: 30, 15, 7.5 W / 8Ω bypass | |
| Environmental: | Exceeds Mil Spec 810 for humidity, salt spray and dust; IEC 60529 IP-X3 splash rating |
| Agency Rating: | Transformer—listed UL1876 |
| ENCLOSURE | |
| Material: | Injection molded, weather resistant high impact polystyrene |

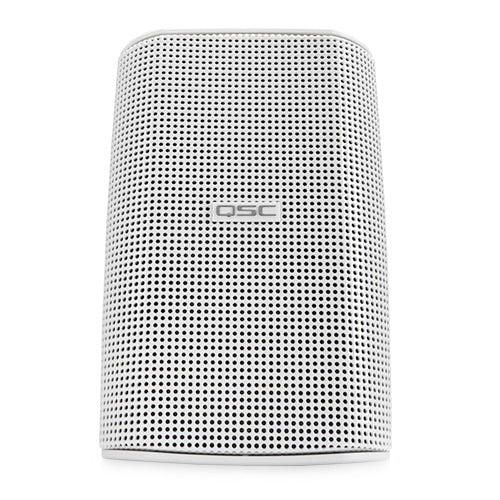

| Finish: | White or black (paintable) |
| Grille: | Heavy duty powder coated aluminum |
| Connectors: | Screw terminals |
| Mounting hardware: | Ball mount assembly; yoke mount bracket included |
| Product Dimensions H x W x D: | 7.9-inch |
