Details
Highlights
- Wide Frequency Range: The QSC Acoustic Design AD-C4T-LP Ceiling Speaker offers an effective frequency range of 70 Hz – 20 kHz, providing clear and balanced sound reproduction across the entire audio spectrum.
- High Sensitivity: With a sensitivity of 87 dB, these speakers deliver sound with great clarity and efficiency.
- 150° Conical Coverage: The speaker's rated coverage of 150° conical ensures even sound distribution, making it suitable for a wide range of applications.
- Powerful Transducer: Equipped with a 114 mm (4.5-inch) weather-resistant paper cone woofer and a 19 mm (0.75-inch) aluminum dome tweeter, this speaker delivers rich and detailed audio performance.
- Sturdy Construction: The speaker's baffle is made of ABS material, and it is enclosed by a powder-coated steel grille, ensuring durability and protection from external elements.
- Easy Installation: With a cutout diameter of Ø 245 mm (Ø 9.65-inch) and a net weight of 3 kg (6.6 lb), the AD-C4T-LP is designed for easy and hassle-free installation.

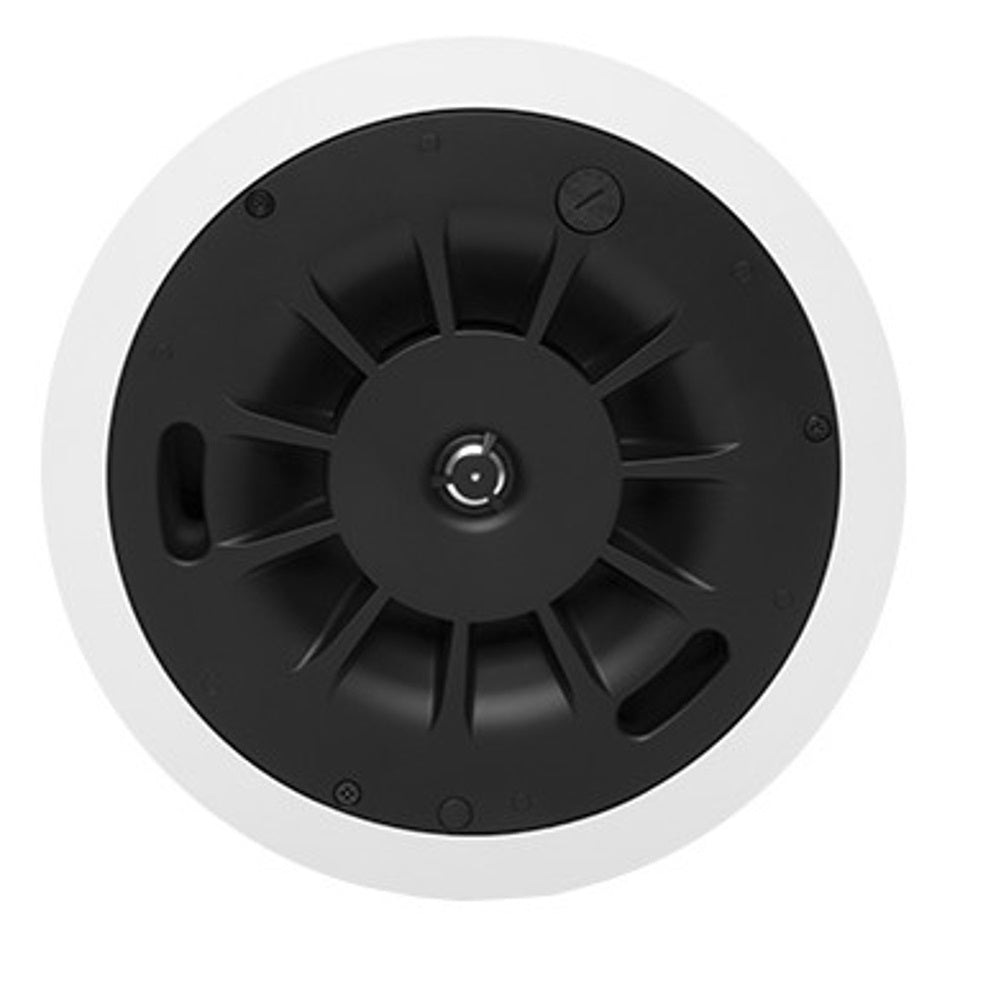

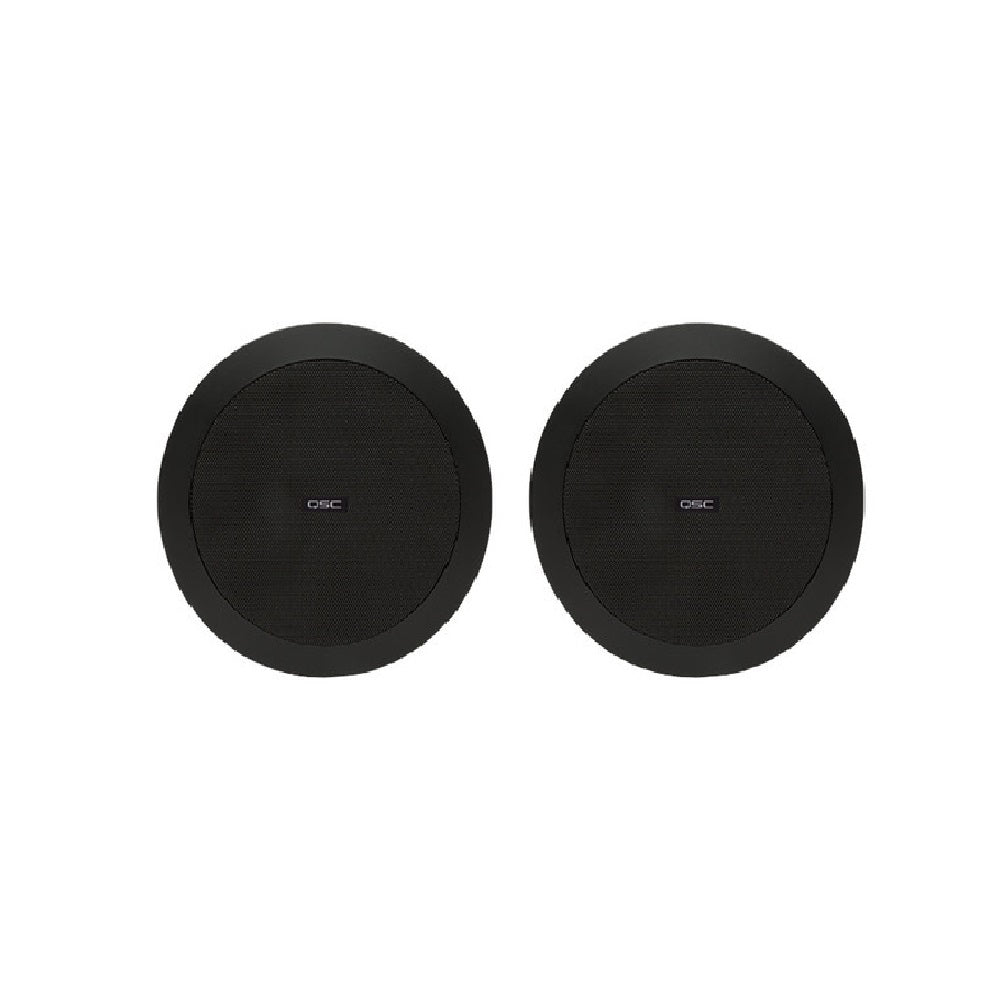

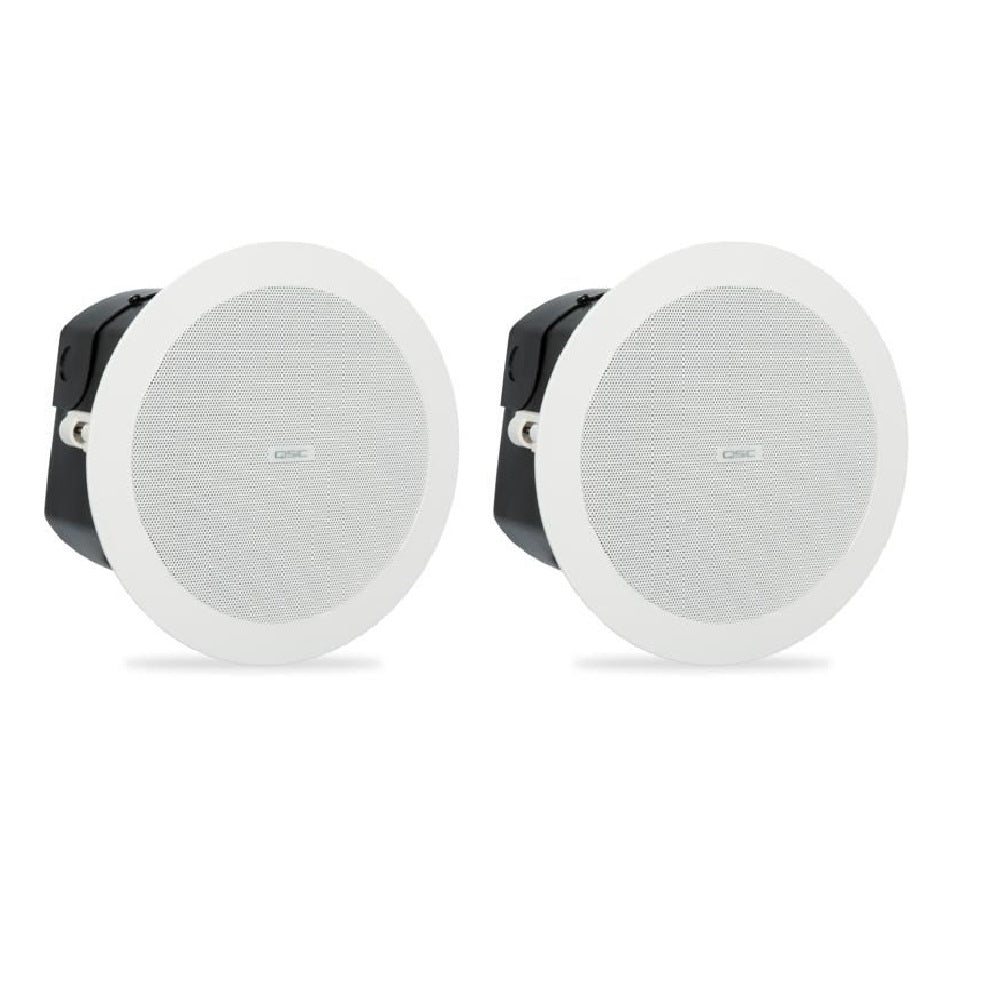

QSC Acoustic Design 2 Way Ceiling Speaker AD-C4T-LP
Experience premium audio performance and versatile coverage with the QSC Acoustic Design AD-C4T-LP Ceiling Speaker. Designed for indoor use, these speakers offer high sensitivity and a wide frequency range, making them ideal for a variety of audio applications.
| Effective Frequency Range: | 70 Hz – 20 kHz |
| Rated Noise Power / Voltage: | 30 watts / 22 volts (rms) |
| Sensitivity: | Sensitivity at 4m, 100V maximum tap: 87 dB |
| Rated Coverage: | 150° conical DMT™ |
| Directivity Factor (Q): | 4.5 |
| Directivity Index (DI) [dB]: | 6.5 |
| Maximum Continuous SPL: | 102 dB |
| Maximum Peak SPL: | 108 dB |
| Nominal Impedance [ohms]: | 16 |
| Recommended Amplifier Power: | 60 watts into 8 ohms |
| Transformer Taps / Impedance: | 70V: 3.75W, 7.5W, 15W, 30W 100V: 7.5W, 15W, 30W 8 ohm bypass |
| LF Transducer: | 114 mm [4.5-inch] weather-resistant paper cone woofer |
| HF Transducer: | 19 mm [0.75-inch] aluminum dome tweeter |
| Input Connector Type: | Euroblock connector with parallel output |
| Enclosure Material: | ABS baffle on powder-coated steel back can |
| Grille Material: | Powder-coated steel |
| Ingress Protection: | IP-34 |
| Operating Environment: | Designed for indoor use |
| Operating Temperature Range: | -20 to 50° C (-4 to 122° F) |
| Cutout Dimension: | Ø 245 mm [Ø 9.65-inch] |
| Net Weight: | 3 kg [6.6 lb] |
| Product Dimensions (Diameter x Height) mm: |
