Details
Highlights
- Clear and Broad Sound: The QSC Acoustic Coverage AC-C2T Ceiling Speaker delivers a broad frequency range of 70 Hz to 20 kHz, ensuring clear and high-quality audio reproduction.
- Wide Coverage Angle: With a coverage angle of 170° (500 Hz to 5 kHz), this speaker provides consistent sound distribution, making it ideal for various applications.
- Multiple Transformer Taps: The AC-C2T offers versatile installation options with multiple transformer taps, including 70V (16, 8, 4, 2, 1 watts and 8-ohm bypass) and 100V (16, 8, 4, 2 watts and 8-ohm bypass), allowing for easy integration into different audio systems.
- Safe and Efficient: Tested and listed as UL1480 and UL2043 safe for use in air handling space, ensuring safety and reliability in commercial installations.
- Ease of Installation: The speaker comes with included accessories such as rails and C-ring for ceiling tile installation, and an optional AC-MR4 mud ring is available for sheet rock installations, making the setup process convenient and hassle-free.

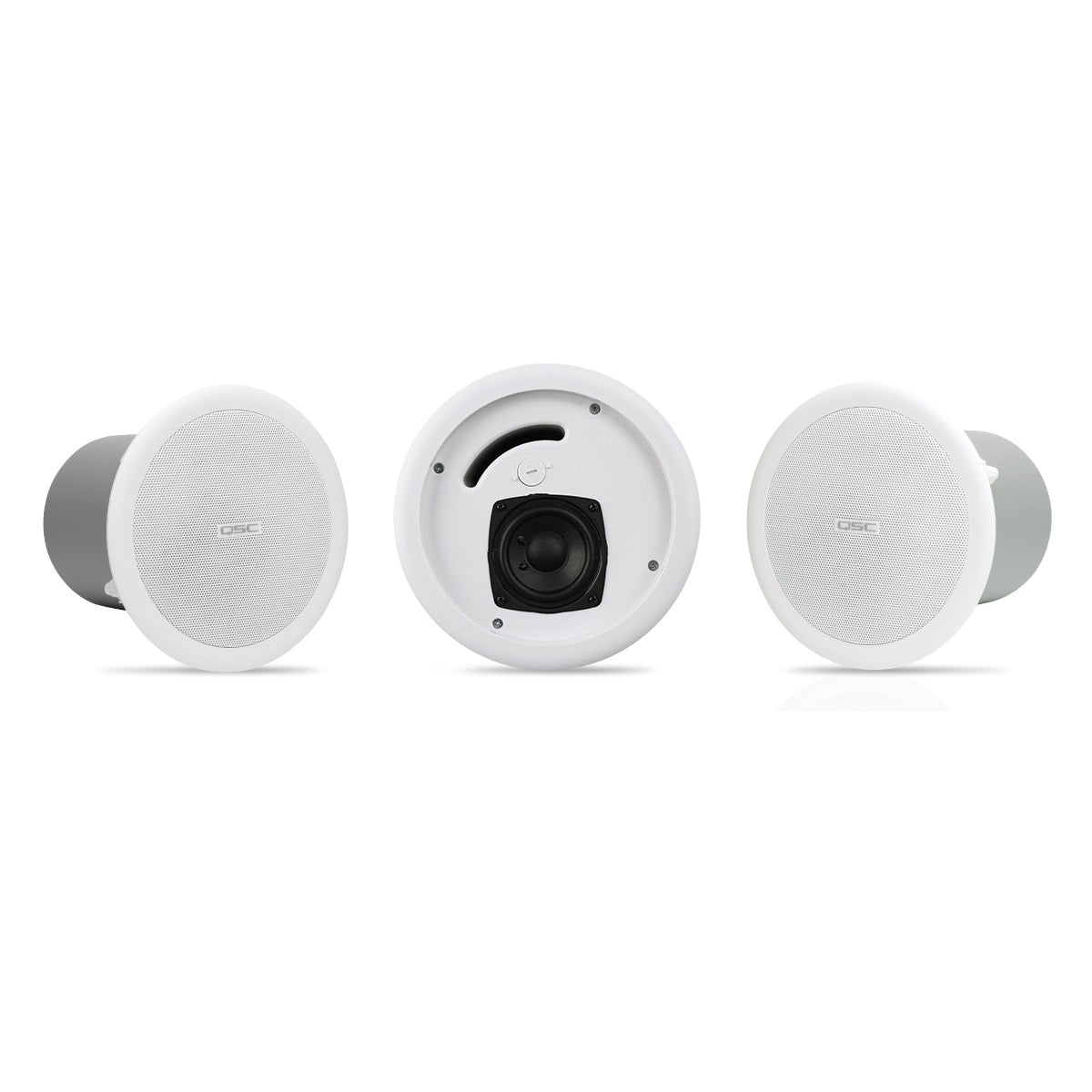

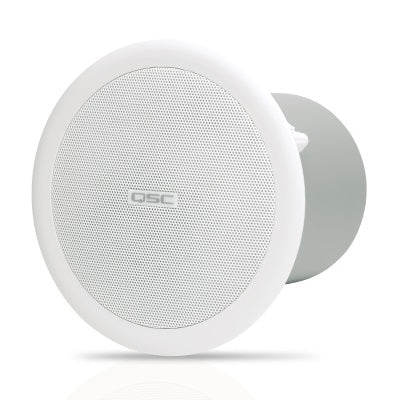

QSC Acoustic Coverage AC-C2T Ceiling Speaker
Experience exceptional sound quality with the QSC Acoustic Coverage AC-C2T Ceiling Speaker. Designed for versatility and performance, this speaker is an excellent addition to any commercial audio setup.
| Effective Frequency Range: | 70 Hz to 20 kHz | Maximum Continuous SPL: | 96 dB |
| Rated Noise Power / Voltage: | 16 watts / 11.3 volts (rms) | Maximum Peak SPL: | 102 dB |
| Broad-Band Sensitivity: | 84 dB | Rated Impedance: | 8 ohms |
| Coverage Angle (-6 dB): | 170° (500 Hz to 5 kHz) | Transformer Taps (70V): | 16, 8, 4, 2, 1 watts and 8-ohm bypass |

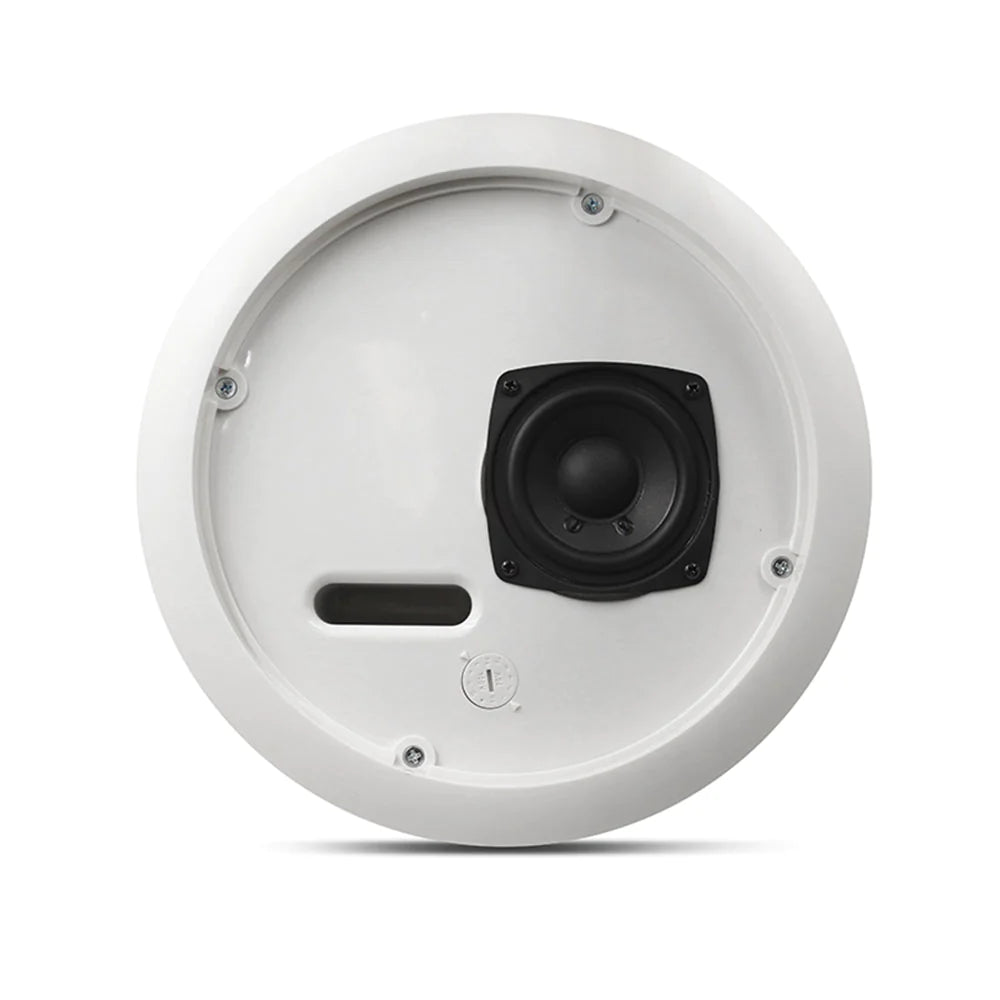

| Transducer: | 2.75-inch treated paper cone with rubber surround | Transformer Taps (100V): | 16, 8, 4, 2 watts and 8-ohm bypass |
| Input Connector Type: | Euroblock connector with parallel output terminals | Net Weight: | 4.2 lb / 1.9 kg |
| Baffle Material: | Painted ABS polymer | Product Dimensions: | 8.4-inch × 7.9-inch (214 × 201 mm) |
| Grille Material: | Powder-coated steel | Cut-out Dimensions: | 7.31-inch (185.67mm) |
| Back Can Material: | Powder-coated steel | Ceiling Capture Thickness: | 0.25-inch to 1.5-inch (6.35 to 38.1mm) |
| Testing: | Listed UL1480, UL2043 safe for use in air handling space | Shipping Weight: |
