Details
PROJECTION SYSTEM
-
- Native Resolution : 4K UHD (3840 x 2160) 1)
- Brightness (ANSI Lumen) : 2000
-
- Contrast Ratio (Full On Full Off) : 2,000,000:1
- Noise (typical) - Energy Saving Min. (Bright) : 28 dB(A)↓
-
- Noise (typical) - Energy Saving Med. : 27 dB(A)↓
- Noise (typical) - Energy Saving Max. (Eco) : 26 dB(A)↓
-
- Uniformorty(JBMMA 9point) : 85%↑
- Projection Lens - Focus (Auto / Motorized / Manual) : Manual
-
- Projection Lens - Zoom : 1.6x
- Projection Image - Screen Size : 40" ~ 300"
-
- Projection Image - Standard / 100" (lens to wall) : 150"@4.3~6.9m, 100"@2.9~4.6m, 40"@1.1~1.8m
- Projection Image - Throw Ratio : 1.3 - 2.08
-
- Lens Shift : V +-60% / H +-24%
- Projection Offset : 0% (+110% ~ -110%)
-
- Light source - Type : Laser (B LD + G Phosphor) + RB LED
- Light source - Life High Brightness : 20,000 Hrs
-
- Light source - Life Economic : 30,000 Hrs
GENERAL SPECIFICATION
-
- OSD Language : Korean / English / English(UK) / French / Spanish / German / Portuguese / Brazilian Portuguese / Dutch / Russian / Polish / Hungarian
- / Romanian / Slovenian / Croatian / Bulgarian / Serbian / Italian / Finnish / Swedish / Lithuanian / Norwegian / Latvian /
Estonian / Afrikaans / Czech / Turkish / Slovak / Arabic / ChineseSimplified / Indonesian / L-Spanish / India / Japanese
- Aspect Ratio Control : 16:9/Original/Full Wide/4:3/Vertical Zoom
-
- Sound - Output : 5W + 5W Stereo
- Sound - Clear Voice : Yes (Clear Voice lll)
-
- Sound - Dolby Atmos compatible : Yes (Pass through)
- Net Size (mm) (W x D x H) : 259 x 390 x 123
-
- Net Weight (kg or g) : 6.5Kg
- Power Consumption (Max.) : 210W
-
- Stand-by Power : <0.5W
- Power Supply : Adapter 210W (100V – 240V @ 50~60 Hz)
-
- Operation Temperature : 0 ~ 40℃
- Input Signal Compatibility - Digital(HDMI) : Up to 4K (4096x2160), (60Hz, 50Hz, 24Hz)
INPUT/OUTPUT TERMINALS
-
- Audio out : S/PDIF 1(Optical)
- IP control : Yes
-
- RJ45 : 1
- HDMI : 3 (HDMI2.1* : 1EA / HDMI2.0 : 2EA)
- *ALLM (Auto Low Latency Mode),
eARC (Enhanced Audio Return Channel),
up to 24Gbps (input) / 4:4:4/RGB 10 bit (output)
-
- USB Type-A : 2 (USB2.0)
OS/CONNECTIVITY
-
- Platform (OS, UI) : webOS 6.0 (Smart)
- Home Dashboard (Input, IoT with OCF device) : Yes (OCF/UEI IoT not supported)
-
- Background Image : Yes
- Premium CP : Yes
-
- Contents Store (LG App Store) : Yes
- Contents Suggestion : Yes
-
- Internet Browser : Yes

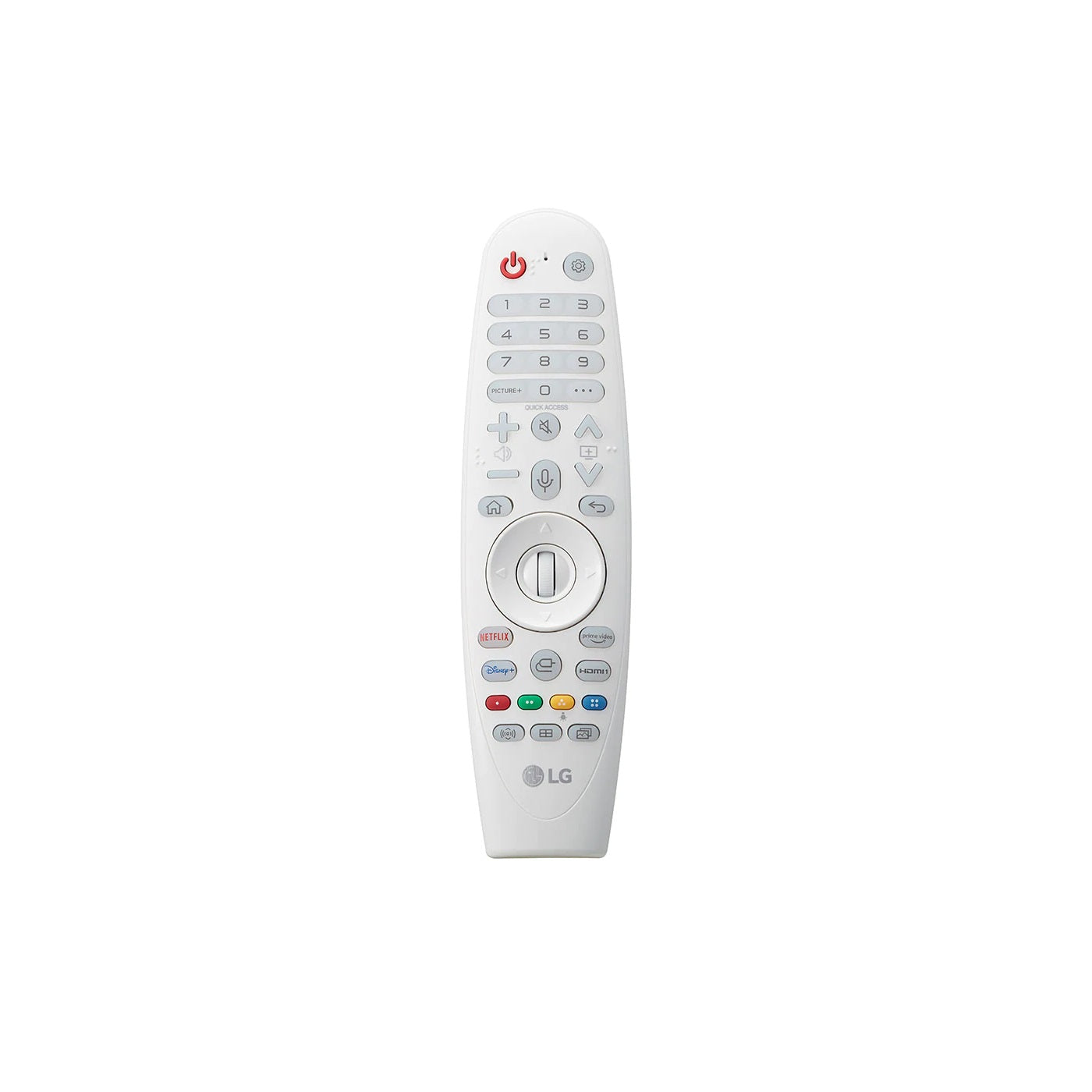

- Voice Recognition - Built-in (Thru MIC on Magic Remote) : LG ThinQ
-
- Voice Recognition - Speaker Compatible (works-with) : Apple Homekit works-with
- Screen Share (Wireless Mirroring with MiraCast supporting Android/Window device) : Yes (up to 4K/30Hz)
-
- Airplay 2 : (iOS/Mac Video Casting, mirroring, Audio Streaming)Yes (up to 4K/30Hz)
- Bluetooth - Bluetooth Sound out : Yes
-
- Bluetooth - Bluetooth AV(Lip) Sync Control : Yes
- LG Sound Sync(with Sound Bar) : Yes
-
- HDMI ARC(Audio Return Channel) : Yes (eARC)
- HDMI simplink(CEC) : Yes
-
- HDCP : HDCP2.3
- Plug & Play(RGB/DVI/HDMI Auto Source Detection) : Yes
-
- USB Host (Movie, Music, Photo) : Yes
- Setting Guide : Yes (Bean Bird)
-
- HID (Keyboard/Mouse/GamePad Connection Thru USB) : Yes
- Eco Function - Energy Saving Mode : Yes (Min/Med/Max)
-
- Eco Function - Sleep Timer : Yes
- Eco Function - Auto Off / Auto Sleep : Yes
-
- Eco Function - Time Power On/Off (On Time / Off Time) : Yes (On / Off)
- Eco Function - Automatic Standby / Auto Power Off : Yes
-
- Eco Function - HDD Eco Mode : Yes
PICTURE QUALITY AND SETTING
-
- Processor : Quad Core
- HDR : HDR10, HLG
-
- HDR Tone Mapping : Yes (Auto, Dynamic/frame by frame)
- Brightness Optimizer - Iris Mode : Yes
-
- Brightness Optimizer - Adaptive Contrast : Yes (High / Medium / Low / Off)
- TruMotion : Yes (up to 4096 x 2160)
-
- Cinema Screen ( Real Cinema) : Yes (up to 4096 x 2160)
- Upscaler : Yes (4K)
-
- Super Resolution (Expert Control) : Yes (4K)
- FILMMAKER mode : Yes
-
- HGiG (HDR Gamming Interest Group) mode : Yes
- Digital Keystone Correction : Edge Adjustment (4/9/15 Point Warping)
-
- Real Cinema : Yes (up to 4096 x 2160)
- Image Flip : Yes (Horizontal/Vertical)
-
- Smooth Gradation : Yes
- Black Level Control : Yes
-
- Noise Reduction : Yes
- Colour Temperature Adjustment : Yes
-
- Dynamic Contrast (Expert control) : Yes
- Dynamic colour (Expert control) : Yes
-
- Colour Management System (Expert control) : Yes
- Colour gamut setting (Expert control) : Yes
-
- Gamma Correction (Expert control) : Yes
- White balance setting (Expert control) : Yes
ADDED FEATURES
-
- Quick(Instant) Power on/off : Yes (on 12 Sec ↓ / off 2 Sec)
- Store Mode : Yes
-
- Self Diagnosis : Yes
DESIGN
-
- Cabinet colour : White
- Local Key : Joystick
-
- Kensington Lock : Yes
- Leg-Stand : Yes
-
- Ceiling mount hole (for bracket) : Yes
