Details
Highlights

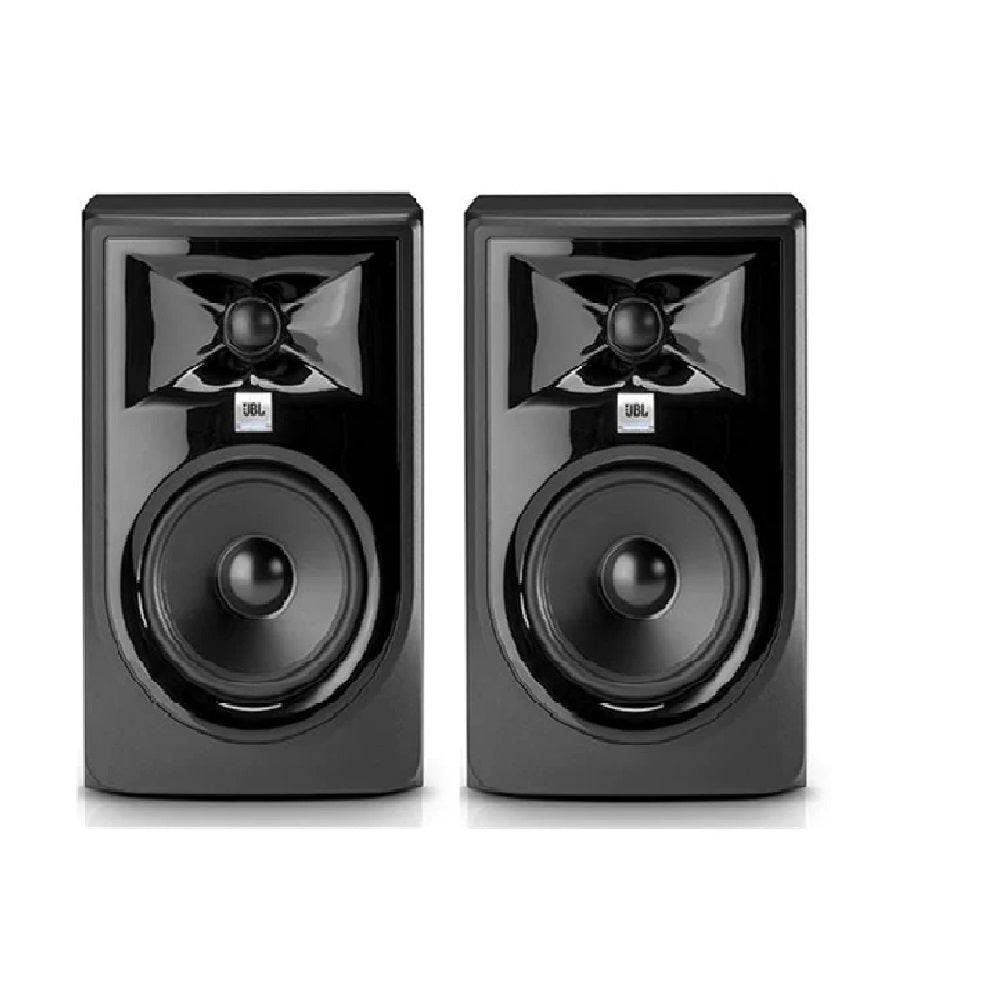

- Premium Reference Monitor: The JBL Studio Series 306P MkII is a professional-grade reference monitor designed to deliver accurate and detailed audio reproduction, making it perfect for critical listening and precise audio work.
- High-Quality Drivers: Equipped with a 6.5-inch LF driver and a 1-inch soft dome HF driver, the 306P MkII ensures exceptional sound clarity and accurate frequency response for a wide range of audio content.
- Advanced Crossover Design: The 306P MkII features a 4th order acoustic Linkwitz-Riley crossover at 1425Hz, allowing seamless blending of the LF and HF drivers for smooth and coherent audio performance.
- Bi-Amplified Configuration: Each driver is individually powered by its dedicated Class-D amplifier, with the HF driver powered by a 56W amp and the LF driver by another 56W amp, providing efficient and precise amplification.
- Wide Frequency Response: Enjoy a frequency response of 47Hz to 20kHz (±3 dB) and even wider at 39Hz to 24kHz (-10 dB) for accurate reproduction of low and high-frequency content, making it suitable for various audio applications.
- High Sensitivity: The 306P MkII boasts an input sensitivity of 92dB / 1m at -10dBV input, ensuring excellent audio performance even at lower input levels.
Elevate Your Audio Experience with JBL 306P MkII
The JBL Studio Series 306P MkII Reference Monitor is designed to meet the demands of audio professionals and enthusiasts who seek precision and accuracy in their listening experience. Whether you are mixing music, editing videos, or simply enjoying your favorite content, the 306P MkII will provide you with exceptional sound quality and clarity.
Specifications
| Specification | Details |
|---|---|
| LF Driver | 165mm (6.5") |
| HF Driver Size | 25mm (1") |
| HF Driver Type | Soft dome |
| Crossover | 1425Hz 4th order acoustic Linkwitz-Riley |
| OK FOR USE NEAR MAGNETICALLY SENSITIVE EQUIPMENT | Yes |
| INPUT SENSITIVITY (-10dBV INPUT) | 92dB / 1m |
| Power Configuration | Bi-amplified |
| HF DRIVER POWER AMP | 56W, Class-D |
| LF Driver Power Handling | 56W, Class-D |
| Frequency Response (±3 dB) | 47Hz – 20kHz |
| Frequency Range (-10dB) | 39Hz – 24kHz |
| LOW FREQUENCY EXTENSION (-10dB) | 39Hz |
| Maximum Continuous SPL | 92dB |
| Maximum Peak SPL | 110dB |
