Details
Highlights
- High-Output Performance: The JBL Control 25-1L delivers powerful and clear sound performance, making it suitable for both indoor and outdoor background/foreground applications.
- Wide Frequency Range: Experience deep bass and crisp highs with a frequency range of 60 Hz to 20 kHz (-10dB) and a frequency response of 85 Hz - 17 kHz (±3 dB).
- High Power Rating: With a continuous program power of 200W and the ability to handle continuous pink noise, this speaker is well-equipped to handle normal speech and music program material.
- Wide Coverage Angle: The 100°H x 100°V coverage angle ensures even sound dispersion, delivering consistent audio quality throughout the listening area.
- Precise Directivity: With a directivity factor (Q) of 6.04 and directivity index (DI) of 7.6 dB (averaged 1kHz – 16kHz), the Control 25-1L offers focused sound projection and reduced sound dispersion.
- Recommended High-Pass: A 60 Hz high-pass (24 dB/oct) is recommended to protect the speaker from driving below the resonant frequency and to keep the transformer out of saturation.

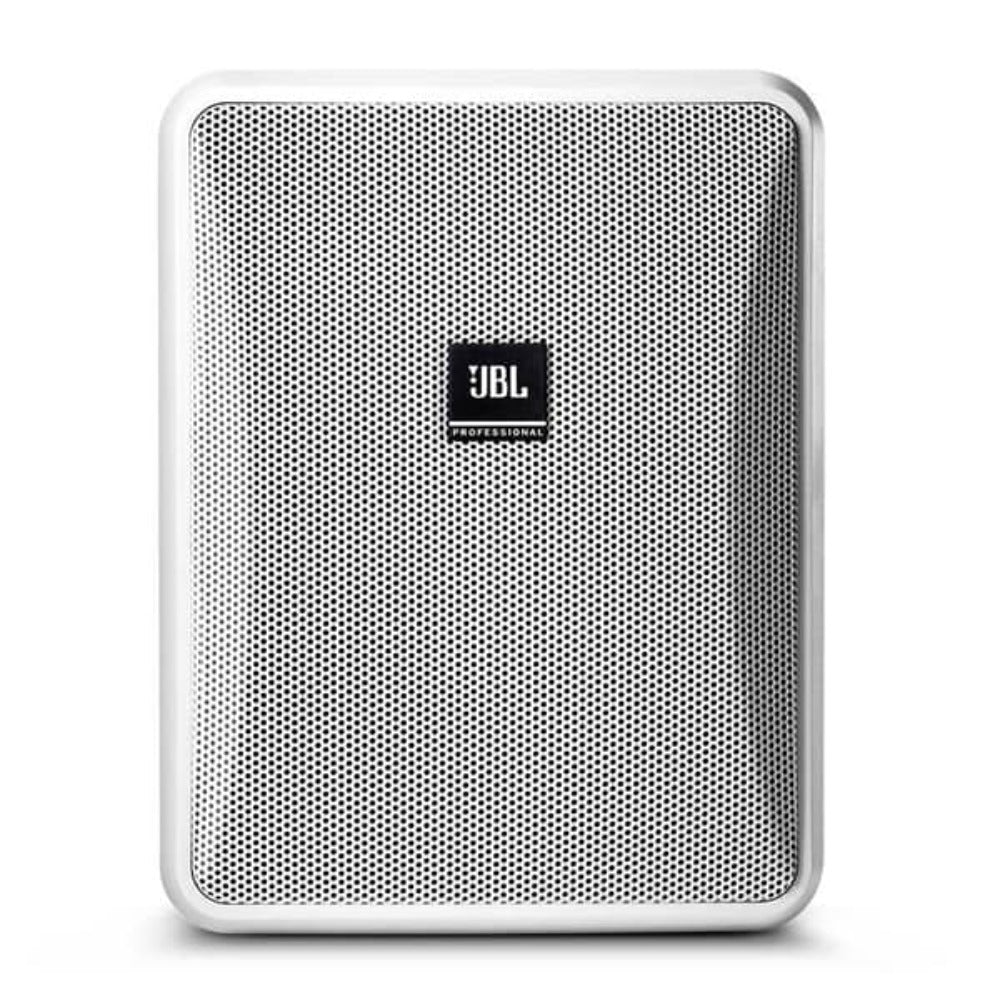

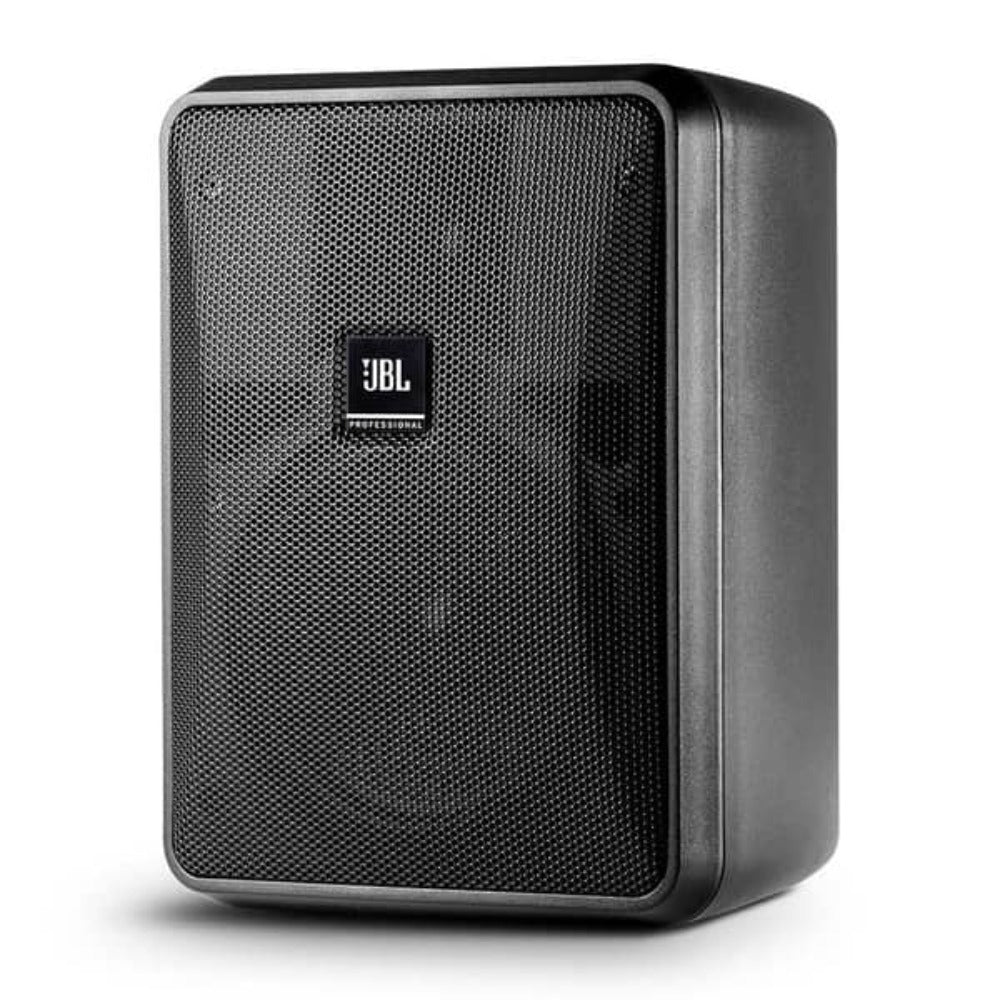

Elevate Your Sound with JBL Control 25-1L
Experience high-output audio performance with the JBL Control 25-1L High-Output Indoor/Outdoor Background/Foreground Speaker. Whether for commercial spaces, restaurants, or outdoor entertainment areas, this speaker delivers powerful and clear sound quality for various applications. With its wide frequency range and precise directivity, the Control 25-1L reproduces audio with depth and clarity, ensuring an immersive listening experience. The recommended high-pass filter further enhances the speaker's performance and protects it from overdriving. Elevate your audio system with confidence and let the JBL Control 25-1L enrich your space with exceptional sound.
Specifications
| Specification | Value |
|---|---|
| Frequency Range (-10dB) | 60 Hz to 20 kHz |
| Frequency Response (±3 dB) | 85 Hz - 17 kHz |
| Power Rating | 200 W Continuous Program (2 hrs) *Continuous Pink Noise rating is IEC-shaped pink noise with a 6 dB crest factor. Continuous Program Power is defined as 3 dB above the Continuou Pink Noise Rating and is a conservative expression of the system’s ability to handle normal speech and music program material. |
| Maximum Input Voltage | 25.3 V RMS (2 hrs), 50.6 V peak |
| Maximum SPL (1m) | 110 dB ave. Continuous Pink Noise (116 dB peak) *Calculated from sensitivity and power handling, exclusive of power compression. |
| Sensitivity | 90 dB, 1W/1m (ave. 100 Hz – 10 kHz) *Half-space (on-wall) averaged 100 Hz – 10 kHz, 2.83V. |
| Coverage Angle | 100°H x 100°V |
| Directivity Factor (Q) | 6.04 (averaged 1kHz – 16kHz) |
| Directivity Index (DI) | 7.6dB (averaged 1kHz – 16kHz) |
| Impedance | 8 ohms |
| Crossover Type | 2nd order low-pass, 3rd order high-pass |
| Recommended Protective High-Pass | 60 Hz high-pass (24 dB/oct) *For protection against driving below resonant frequency and to keep transformer out of saturation. |
Elevate your audio system with the JBL Control 25-1L High-Output Indoor/Outdoor Background/Foreground Speaker. Whether for commercial spaces, restaurants, or outdoor entertainment areas, this speaker delivers powerful and clear sound quality for various applications. With its wide frequency range and precise directivity, the Control 25-1L reproduces audio with depth and clarity, ensuring an immersive listening experience. The recommended high-pass filter further enhances the speaker's performance and protects it from overdriving. Elevate your audio system with confidence and let the JBL Control 25-1L enrich your space with exceptional sound.
