Details
Highlights

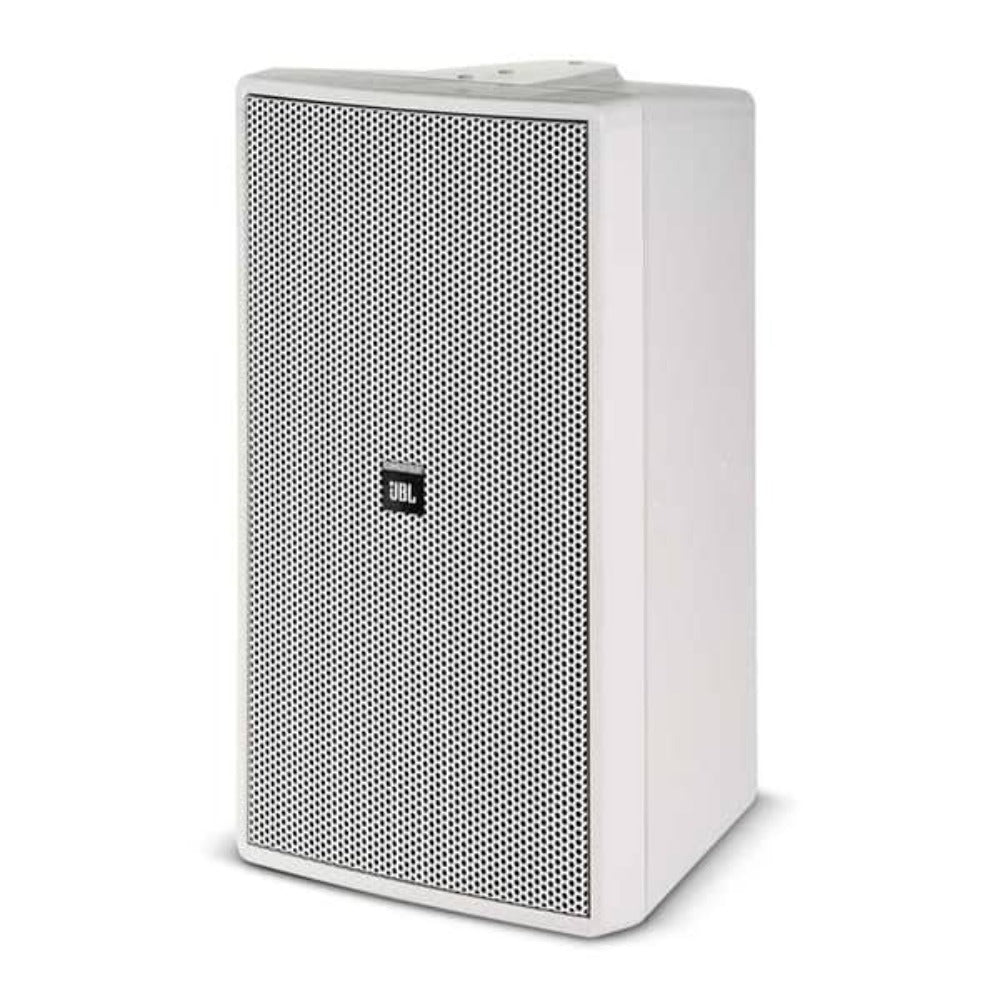

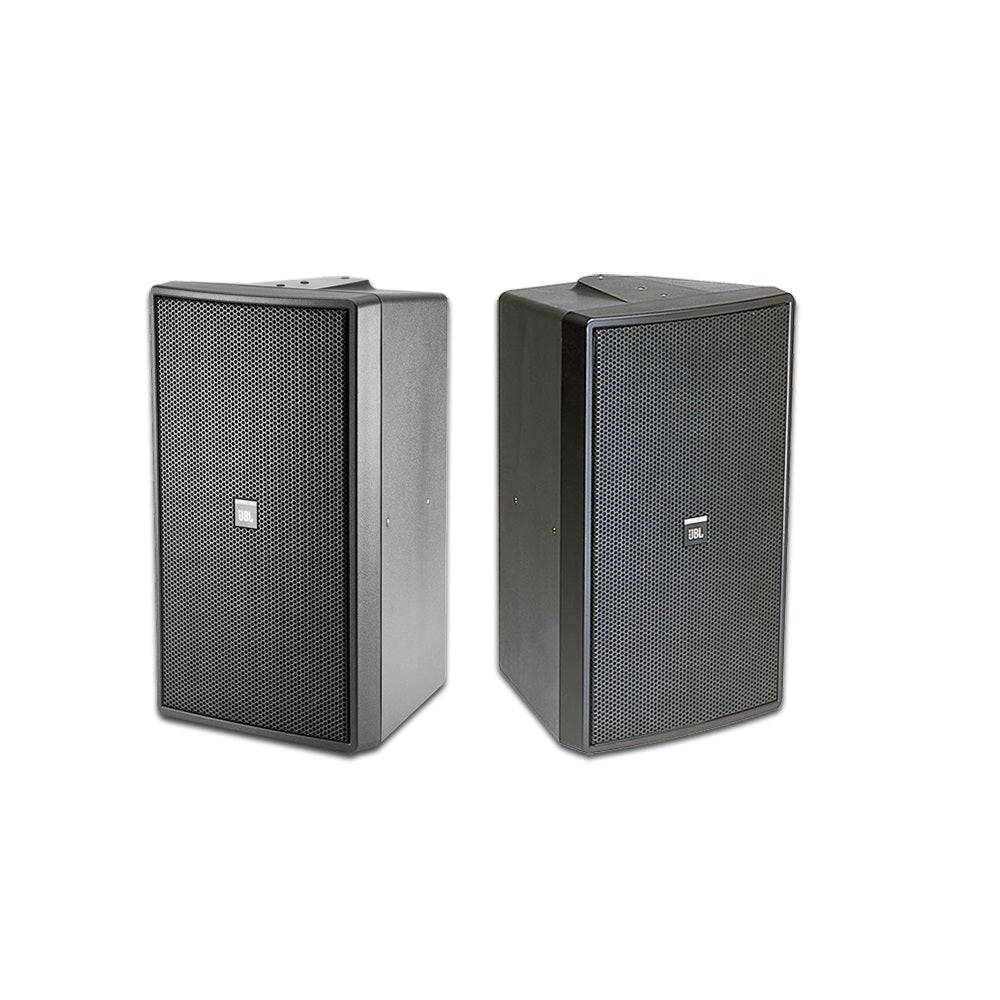

- Premium Sound Quality: The JBL Professional C29AV-1 is a 2-Way Indoor/Outdoor Monitor Speaker designed to deliver exceptional audio performance with its powerful 8-inch driver and precise tweeter.
- Wide Frequency Range: Enjoy an extended frequency range from 37 Hz to 18 kHz (-10 dB) for deep bass and crisp highs.
- Flexible Power Options: The speaker is capable of handling 300 W Continuous Program Power and 150 W Continuous Pink Noise, making it suitable for various applications.
- Transformer Taps: The C29AV-1 offers multiple transformer taps for 70V and 100V systems, providing flexibility in audio distribution.
- Wide Coverage Angle: With a coverage angle of 110°H x 85°V, rotatable, this speaker ensures even sound distribution throughout the listening area.
- High Sensitivity: The nominal sensitivity of 90 dB (2.83V / 1m) allows the speaker to produce impressive sound levels with minimal power input.
Elevate Your Sound Experience with JBL Professional C29AV-1
The JBL Professional C29AV-1 2-Way Premium Indoor/Outdoor Monitor Speaker is engineered to deliver high-fidelity sound for a wide range of applications. Whether used in commercial installations, outdoor venues, or indoor spaces, this speaker ensures that your audience experiences rich and immersive audio quality.
Specifications
Specification | Details |
---|---|
Frequency Range | 37 Hz – 18 kHz (-10 dB) |
Power Capacity | 300 W Continuous Program Power; 150 W Continuous Pink Noise |
Transformer Taps | 70 V: 110 W, 55 W, 28 W & 14 W; 100 V: 110 W, 55 W, & 28 W; Thru Position: 8 ohms nominal |
Frequency Response | 45 Hz – 18 kHz ( ± 3 dB) |
Maximum SPL (1m) | Short-Term: 120 dB; Long-Term: 114 dB |
Nominal Sensitivity | 90 dB (2.83V / 1m) |
Coverage Angle | 110°H x 85°V, Rotatable |
Directivity Factor (Q) | 7.2 dB, averaged 500 Hz to 16 kHz |
Directivity Index (DI) | 8.6 dB, averaged 500 Hz to 16 kHz |
