Details
Highlights
- Powerful Sound: The JBL Commercial Series Ceiling Speaker CSS8018 features an 8-inch full-range driver that delivers powerful and clear audio performance.
- High Sensitivity: With a sensitivity of 97 dB at 2k - 6k Hz, this speaker produces high-quality sound with increased efficiency.
- Wide Frequency Range: The driver/grille assembly offers a frequency range of 50 Hz to 17 kHz (-10 dB), ensuring excellent audio reproduction across different frequencies.
- Multiple Transformer Taps: The speaker comes with various transformer taps, allowing you to customize the power settings to suit your needs.
- Wide Coverage Angle: Enjoy a broad 110° conical coverage angle, providing even sound distribution in the listening area.
Powerful Audio Performance

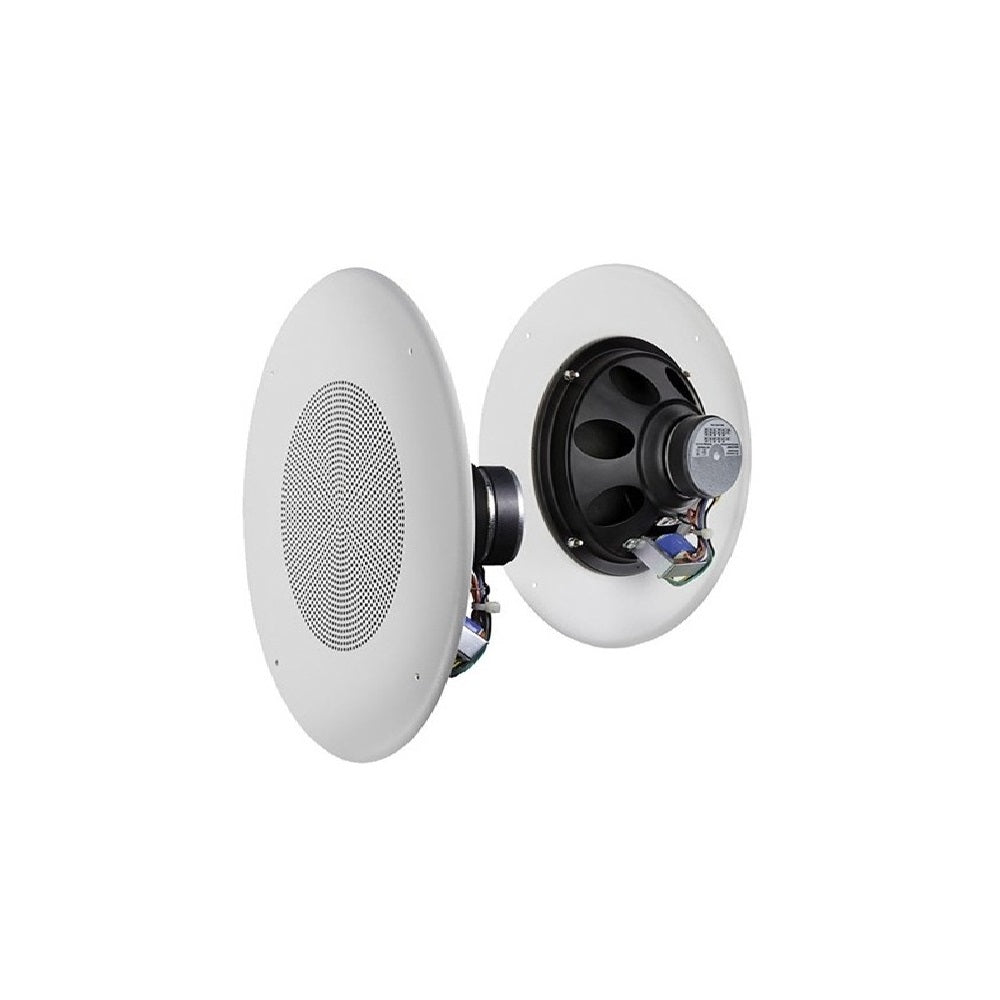

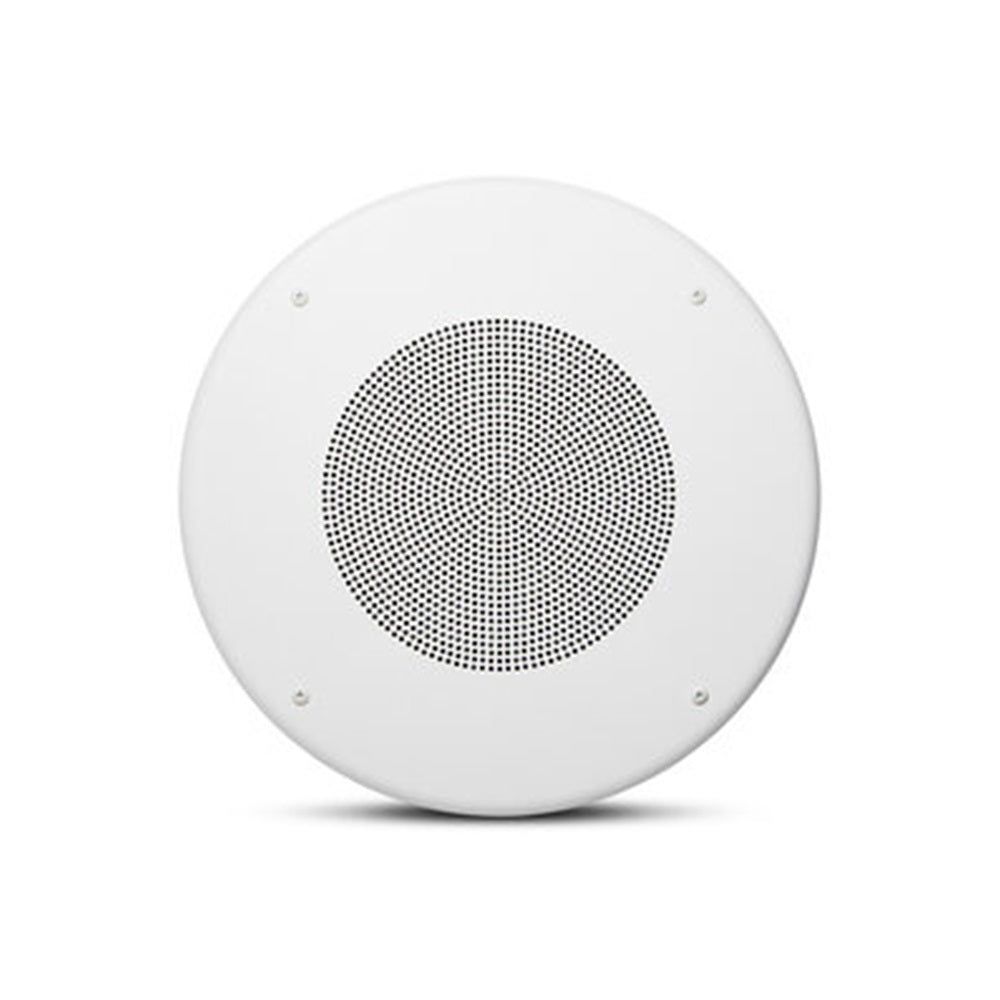

The JBL Commercial Series Ceiling Speaker CSS8018 is designed to deliver high-quality sound in various applications. Its 8-inch full-range driver and high sensitivity ensure accurate sound reproduction and increased efficiency. With multiple transformer taps and a maximum continuous power handling of 20 Watts, this speaker provides versatility and reliability in commercial installations and public address systems. It is suitable for use in air handling spaces, making it an ideal choice for a wide range of projects.
Specifications
| Specification | Value |
|---|---|
| Drivers | 200 mm (8 in) Full-Range |
| Sensitivity | 97 dB (2k - 6k Hz) |
| Frequency Range (-10 dB) Driver/Grille Assembly | 50 Hz – 17 kHz |
| Installed in CSS-BB backcan | 90 Hz – 17 kHz |
| Coverage Angle | 110° conical |
| Driver Continuous Power Handling | 20 Watts |
| Transformer Taps | 10W, 5W, 2.5W, 1.3W |
| Transformer Insertion Loss | 1.5 dB Maximum |
| Transformer Connection | Bare wire |
| Motor Mass | 283 g (10 oz) |
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when installed with corresponding UL Listed backcan, below. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Matching CSS Backcan | CSS-BB8 (0.15 cu ft) |
| Other Compatible Backcans | MTC-81BB8 (0.26 cu ft) MTC-200BB6 (0.5 cu ft) MTC-300BB8 (1.0 cu ft) |
| Bolt Mounting Circle to Backcan | 4 points on 286 mm (11.25 in) diameter |
