Details
Highlights
- Enhanced Audio Experience: The JBL Ceiling Speaker Control 19CST delivers exceptional bass performance and high-quality sound for a wide range of applications.
- Wide Frequency Range: Enjoy rich, deep bass from 42 Hz to 200 Hz, complementing your audio system with powerful low-end response.
- Flexible Power Options: Choose from multiple transformer taps, including 75W, 30W, 15W, and 7.5W @ 70V, allowing you to adapt the speaker to different setups.
- 180° Conical Coverage Angle: The speaker's wide coverage angle ensures even sound distribution throughout the listening area.
- Impressive Maximum SPL: Experience sound clarity and volume with a maximum SPL of 108 dB (70V/100V, center of ceiling) or 114 dB (70V/100V, near corner).
- Easy Installation: The JBL 19CST comes with a cardboard cutout template for a smooth and hassle-free ceiling installation.
- Durable Construction: The backcan is made of formed steel, and the baffle/rim is constructed from medium impact polystyrene, ensuring long-lasting performance.
- Safe and Certified: Suitable for use in air handling spaces, UL1480, UL2043, NFPA90, and NFPA 70 compliant, and transformer UL registered per UL1876.
- Versatile Connectivity: Features removable locking connectors with screw-down terminals for secure and reliable input connections.

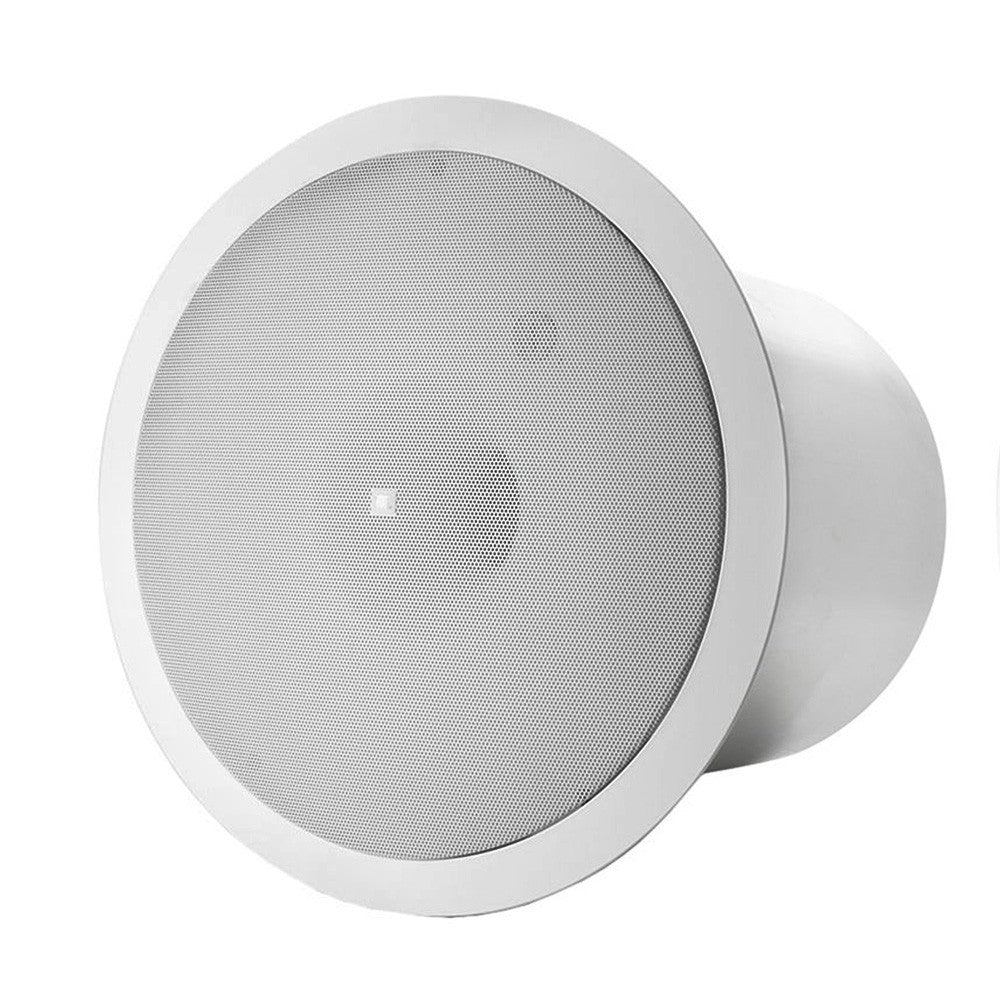

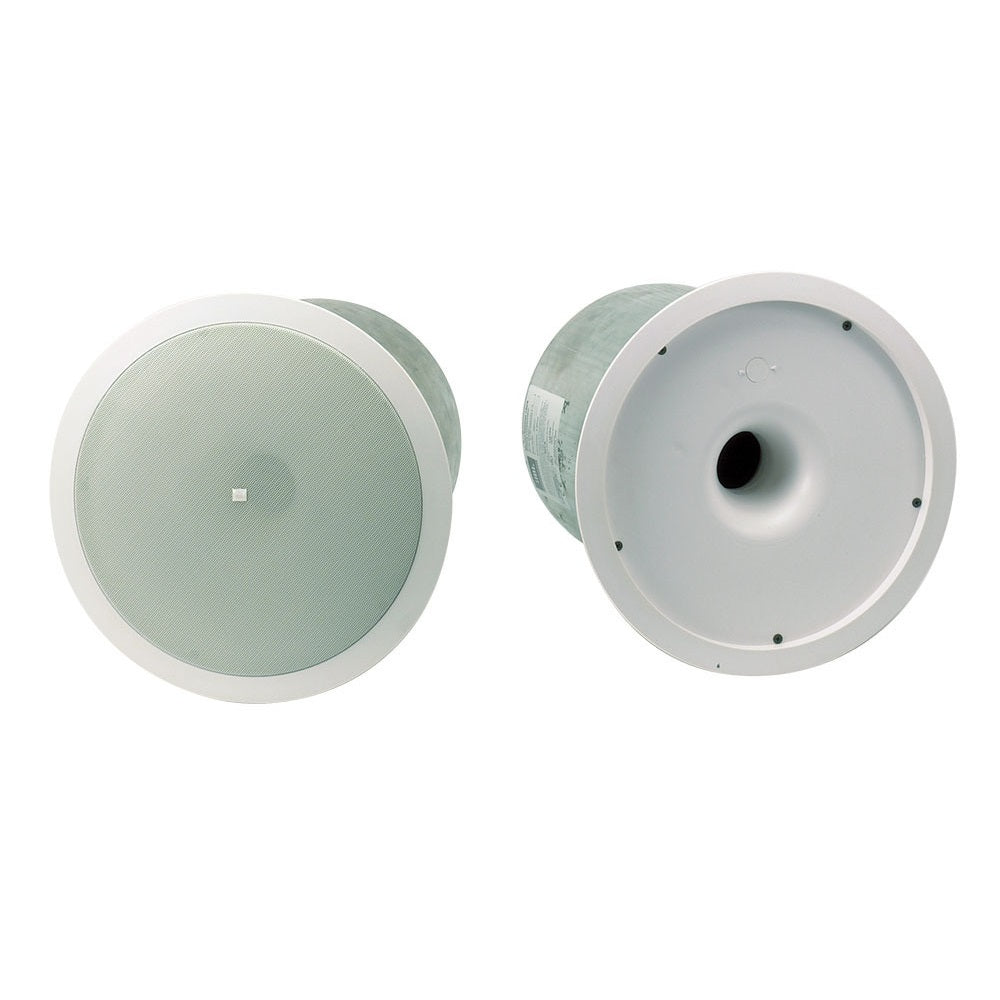

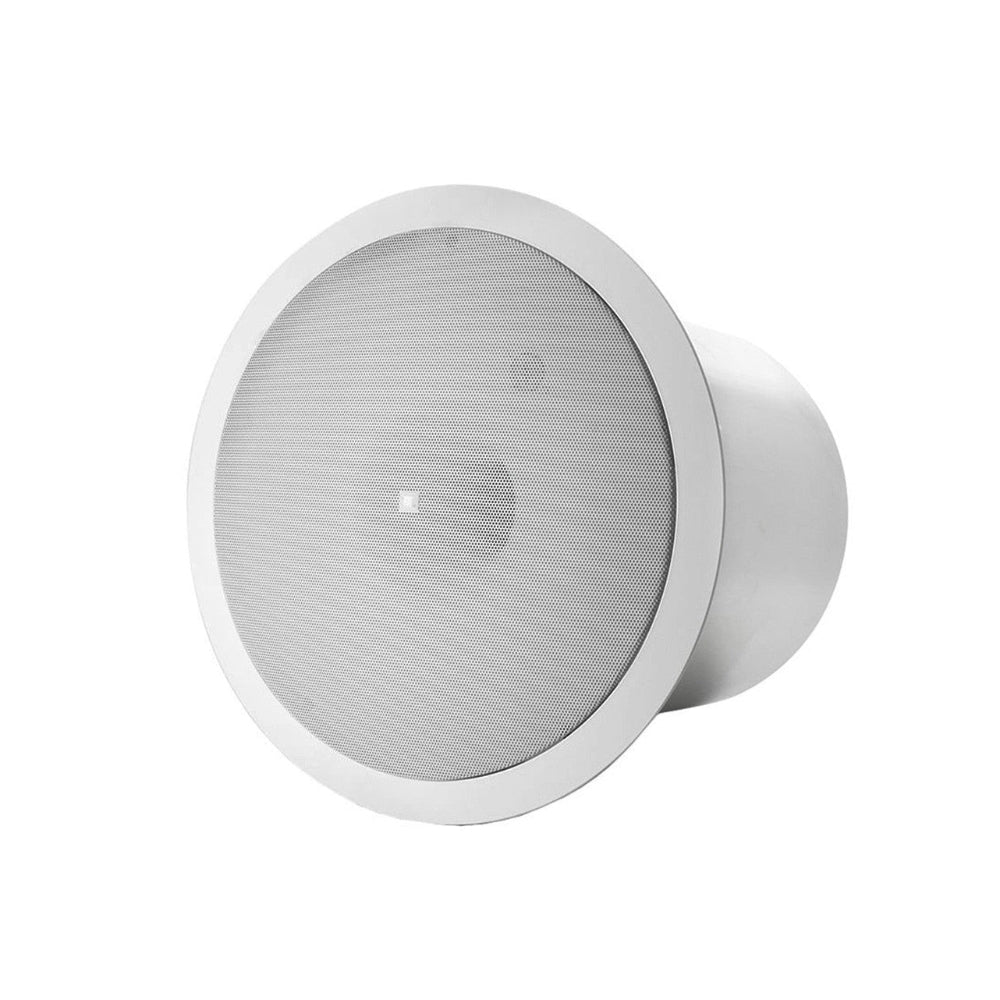

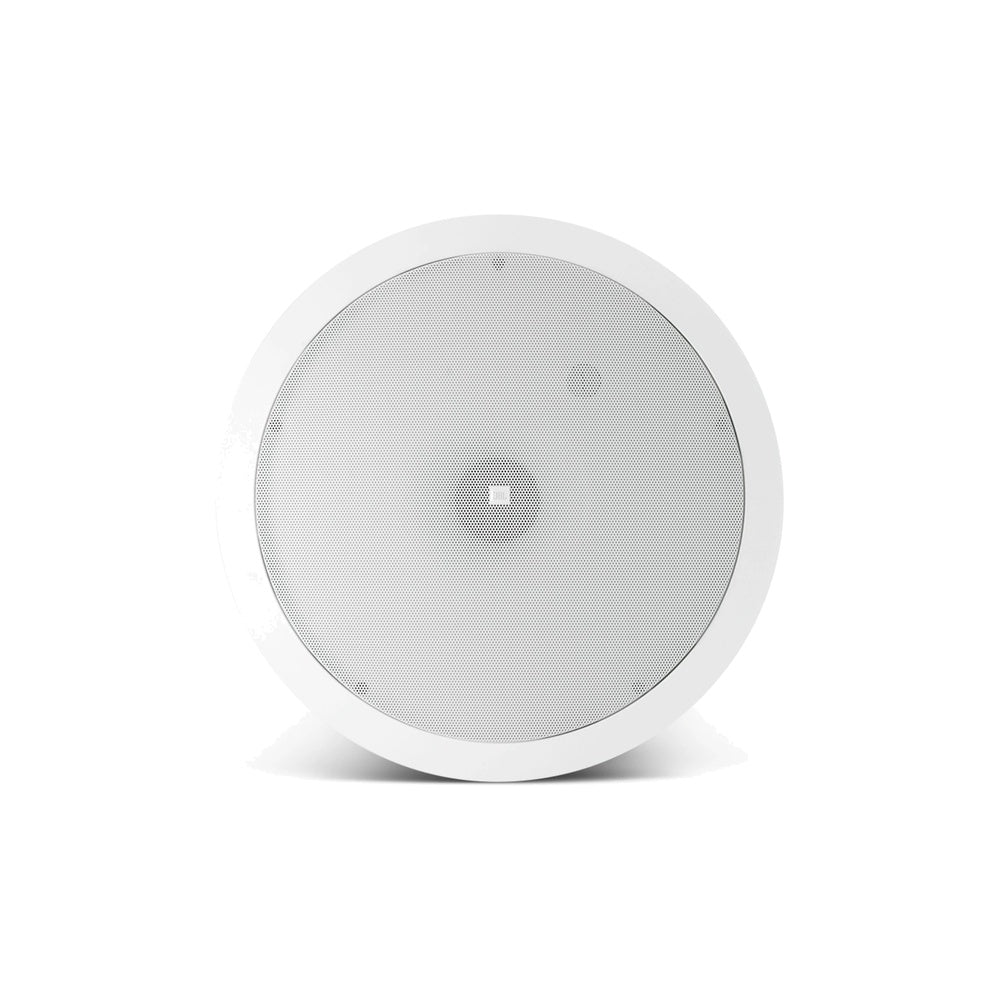

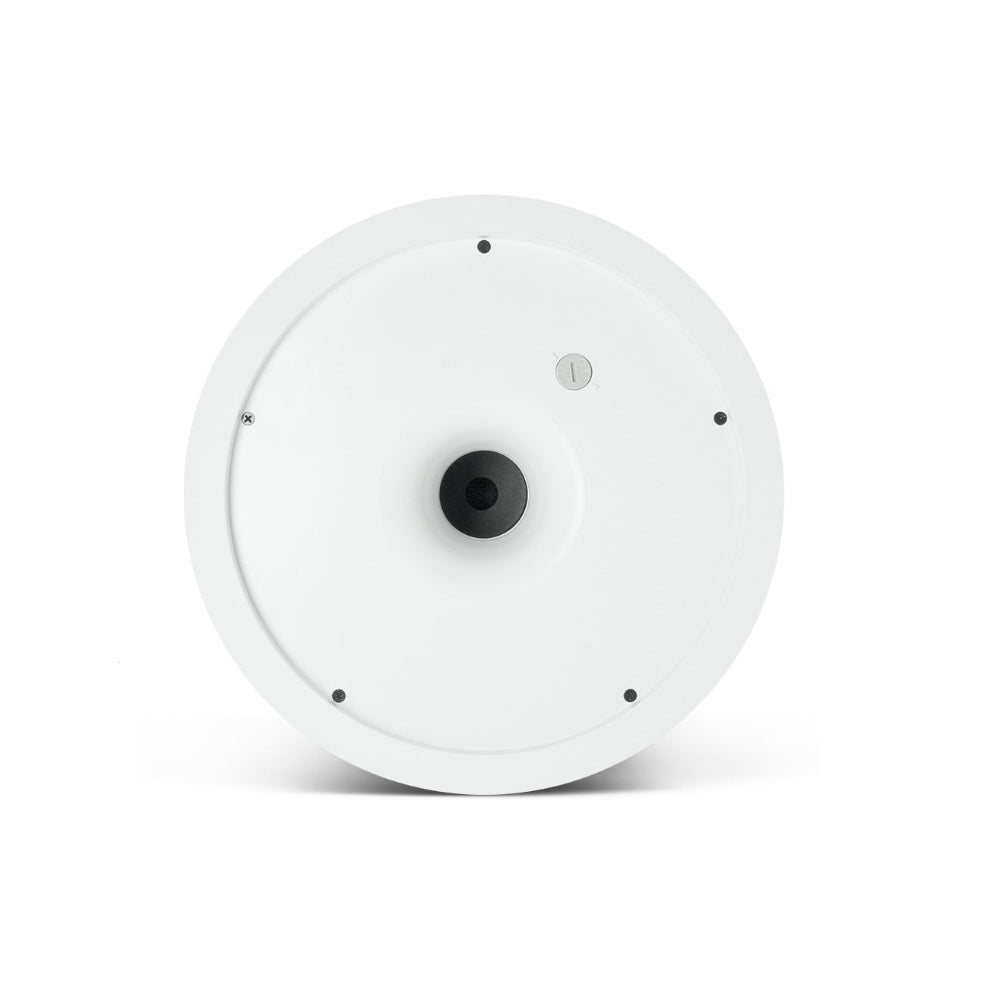

Elevate Your Audio with JBL Control 19CST
Experience a new level of audio excellence with the JBL Ceiling Speaker Control 19CST White. Designed to complement your sound system, this ceiling speaker delivers powerful bass and crystal-clear sound, making it ideal for various environments such as restaurants, hotels, retail spaces, and more. With its wide frequency range and transformer taps, you can tailor the speaker's output to match your specific needs. The 180° conical coverage angle ensures that everyone in the room enjoys the immersive sound experience. Install with ease and confidence, and elevate the atmosphere with JBL's legendary audio performance.
Specifications
| Specification | Value |
|---|---|
| Frequency Range | 42 Hz - 200 Hz |
| Power Rating | See transformer taps |
| Transformer Taps | 75W, 30W, 15W (& 7.5W @ 70V) |
| Coverage Angle | 180° conical |
| Maximum SPL (1m) | 108 dB (70V/100V, center of ceiling)
114 dB (70V/100V, near corner) |
| Nominal Impedance | 8 ohms |
| Drivers | 200 mm (8.0 in) subwoofer |
| Enclosure Material | Backcan: Formed steel
Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0 |
| Input Connectors | Removable locking connector with screw-down terminals |
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70.
S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Outside Dimensions (H x Dia) | 345 x 345 mm (13.6 x 13.6 in)
318 mm (12.5 in) front of ceiling tile to back of backcan |
| Ceiling Cutout Size | 305 mm (12.0 in) diameter (cardboard cutout template included) |
| Net Weight (each) | 6.3 kg (14 lb) |
| Shipping Weight (pair) | 14.3 kg (32 lb) |
Elevate the audio experience in your space with the JBL Ceiling Speaker Control 19CST White. With its outstanding performance, durable construction, and easy installation, this ceiling speaker is the perfect choice for delivering immersive sound in various commercial environments. Enhance the ambiance of your venue, and let the JBL Control 19CST take your audio to new heights.
