Details
Highlights
- Dbx 560A 500 Series Compressor/Limiter: Achieve optimal audio control with this versatile compressor/limiter, suitable for a range of applications.
- Dynamic Range: Dynamic range of over 119 dB ensures pristine signal quality and clarity.
- Wide Compression Adjustment Range: Offers variable compression gain adjustment from -20 dB to +20 dB, allowing fine-tuning of audio dynamics.
- Program-Dependent Control: Program-dependent attack and release times ensure adaptive and natural-sounding compression.
- Compact Design: Designed to fit into a 500 Series Compatible Power-frame with just 1 slot.
- Efficient Power Consumption: Draws only 1.92 watts while delivering professional-grade performance.

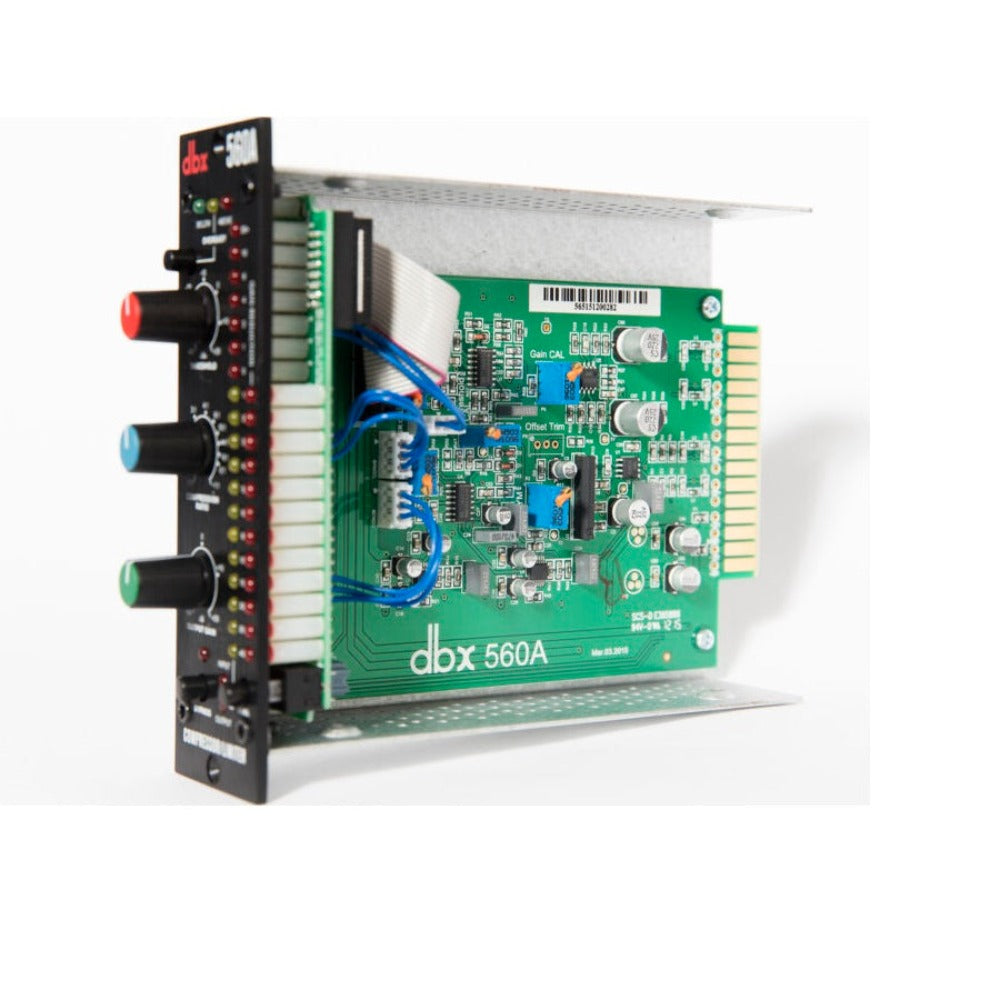

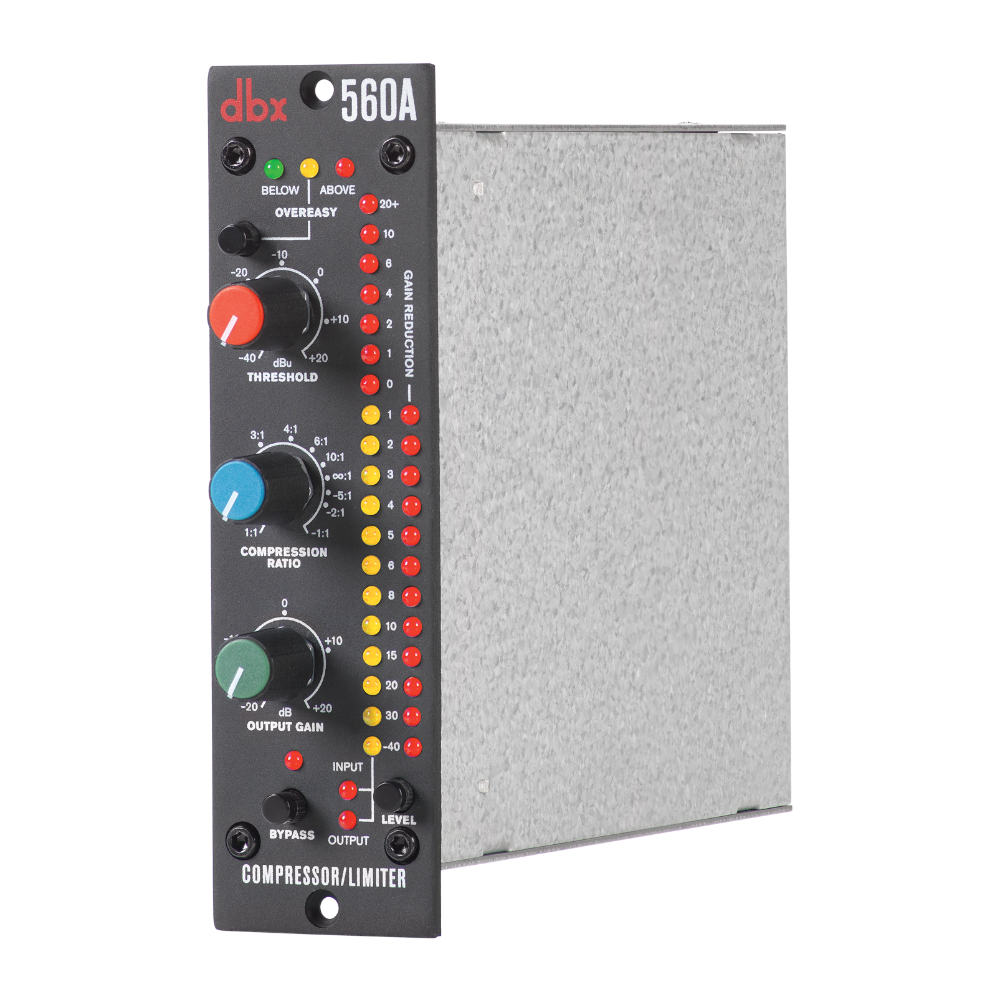

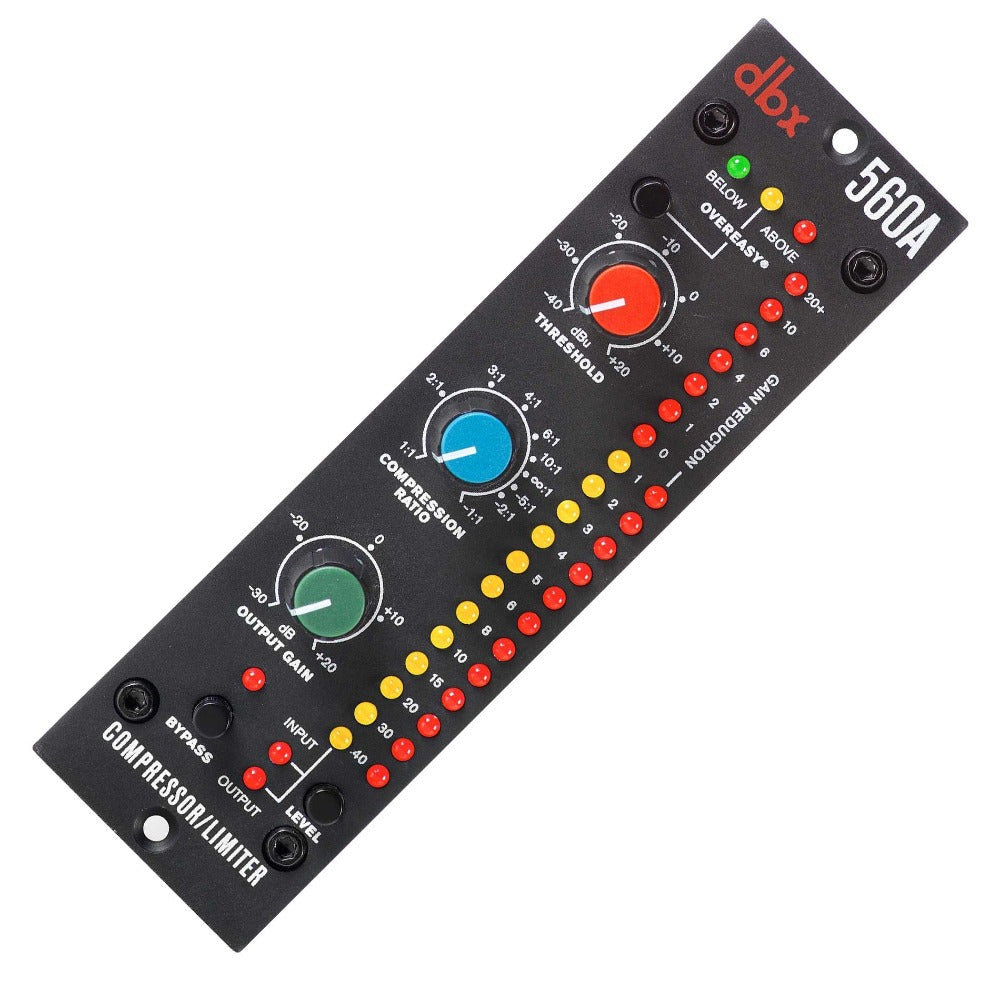

Dbx 560A 500 Series Compressor/Limiter
| Input Type: | Electronically balanced/unbalanced, RF filtered |
| Input Impedance: | 40k Ohms balanced, 20k Ohms unbalanced |
| Maximum Input Level: | +22 dBu |
| CMRR: | >40 dB; typically >55 dB at 1 kHz |
| Output Type: | Electronically balanced/unbalanced, RF filtered |
| Output Impedance: | Balanced 30 Ohms, unbalanced 15 Ohms |
The Dbx 560A 500 Series Compressor/Limiter is a versatile audio processing tool that delivers exceptional control over audio dynamics. Its wide compression adjustment range, program-dependent attack and release times, and dynamic range of over 119 dB make it a valuable asset for audio professionals. Whether you're seeking transparent compression or bold limiting effects, this compressor/limiter delivers exceptional performance in a compact 500 Series-compatible design.
