Details
Highlights
- Powerful 2-Channel Amplification: The Crown NCDI2X600-U 600 Drive Core Series Power Amplifier delivers 600W per channel, providing robust and high-quality audio performance for professional audio applications.
- Low Total Harmonic Distortion: With only 0.35% THD at full rated power, this amplifier ensures minimal distortion, allowing your music to be heard in its purest form without any unwanted artifacts.
- High Signal-to-Noise Ratio: With a signal-to-noise ratio of greater than 104dB at rated power, the NCDI2X600-U ensures clear and detailed sound reproduction, capturing every nuance of your audio source.
- High Damping Factor: With a damping factor greater than 1000 (20Hz to 100Hz), this amplifier provides excellent control over speaker drivers, ensuring tight and precise bass response.
- Efficient Cooling: The amplifier is built with an efficient cooling system, maintaining optimal operating temperatures, reducing fan noise, and increasing the amplifier's longevity.
Overview

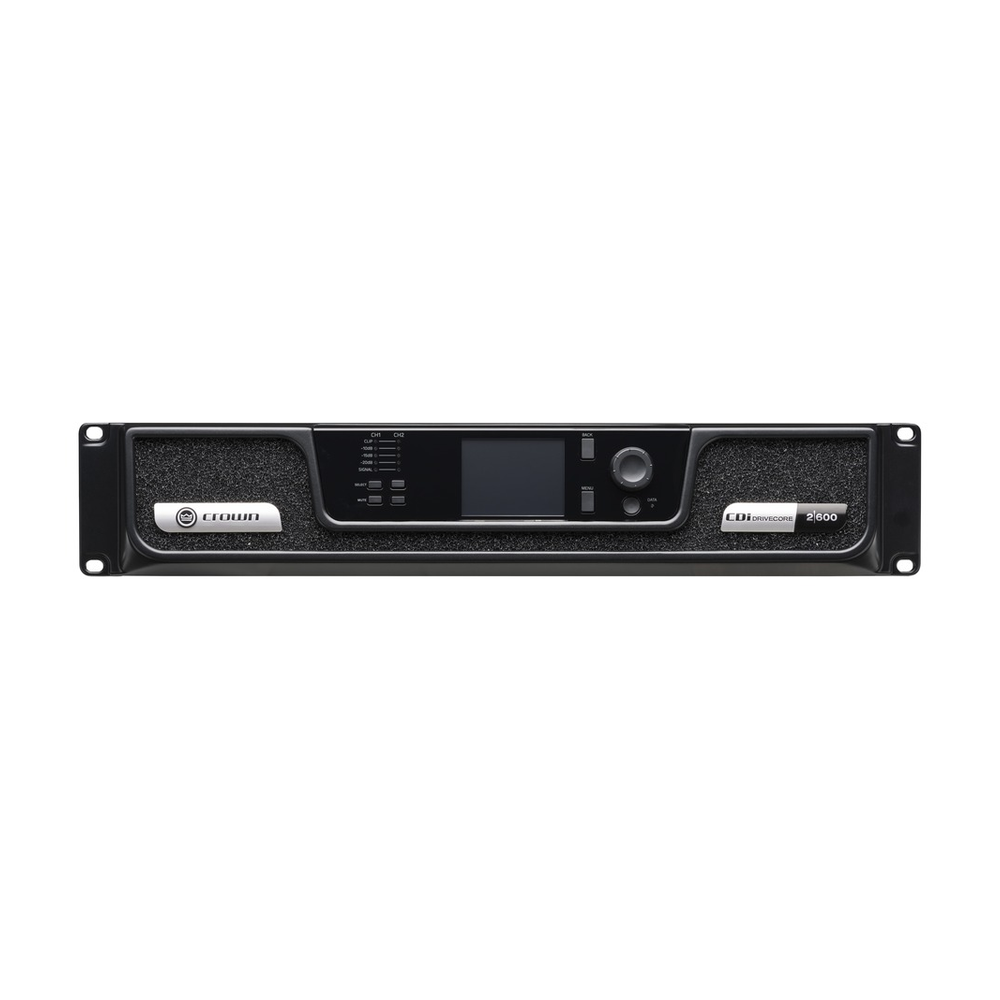

The Crown NCDI2X600-U 600 2-Channel Drive Core Series Power Amplifier is a reliable and powerful audio solution, ideal for professionals seeking high-performance amplification. Whether you're setting up a high-end sound reinforcement system, a commercial installation, or a recording studio, this amplifier provides the power, precision, and flexibility needed to elevate your audio experience.
Specifications
| BLU link | No |
| Channels | 2 |
| Sensitivity (for full rated power at 8 ohms) | 0.7V RMS |
| Rated Power Output (per channel @ 4 ohms) | 600W |
| Analog Input Signal to Noise Ratio (ref. rated power, 100V, 20Hz - 20kHz at 8 ohms) | > 104dB |
| THD (full rated power, 20 Hz - 20 kHz) | 0.35% |
| Damping Factor (20 Hz to 100 Hz) | > 1000 |
| Frequency Response (8Ω, 20 Hz - 20 kHz) | +/-0.5dB |
| Crosstalk (below rated power) 20 Hz to 1 kHz | > 80dB |
| Input Impedance (nominally balanced, nominally unbalanced) | 20 kΩ balanced, 10 kΩ unbalanced |
| Dimensions (inches) (W x H x D) (depth not including 1.3 inch front panel protrusion) | 19 x 3.5 x 12.25 |
| Weight | 14.56 lbs (6.6 kg) |
| Power Supply Connector | Standard IEC type 320 inlet for detachable connector 100 – 240V~ |
Experience the power and versatility of the Crown NCDI2X600-U 600 2-Channel Drive Core Series Power Amplifier. Whether you're a touring musician, a sound engineer, or an audio enthusiast, this amplifier delivers outstanding sound quality with low distortion and efficient cooling. Its flexible load impedance and high damping factor make it a reliable and efficient solution for a wide range of audio applications, ensuring your music is heard with clarity and precision.
