Details
Highlights
- Wide Frequency Response: The BOSE ArenaMatch Utility AMU105 Speaker offers a frequency response of -3 dB from 1100 Hz to 16 kHz and a frequency range of -10 dB from 90 Hz to 18 kHz, providing clear and detailed audio reproduction.
- Adjustable Coverage Pattern: The speaker features a nominal coverage pattern of 100° × 100°, ensuring even sound distribution over a wide area.
- High-Pass Filter: It is recommended to use a 90 Hz high-pass filter with a minimum 12 dB/octave to enhance the overall audio performance.
- Power Handling: The speaker can handle up to 100 W of long-term continuous power and up to 400 W of peak power, delivering robust and powerful sound.
- Outdoor Installation: The ArenaMatch Utility AMU105 is designed to withstand outdoor conditions, with an IP55 rating for direct-exposure outdoor installations.

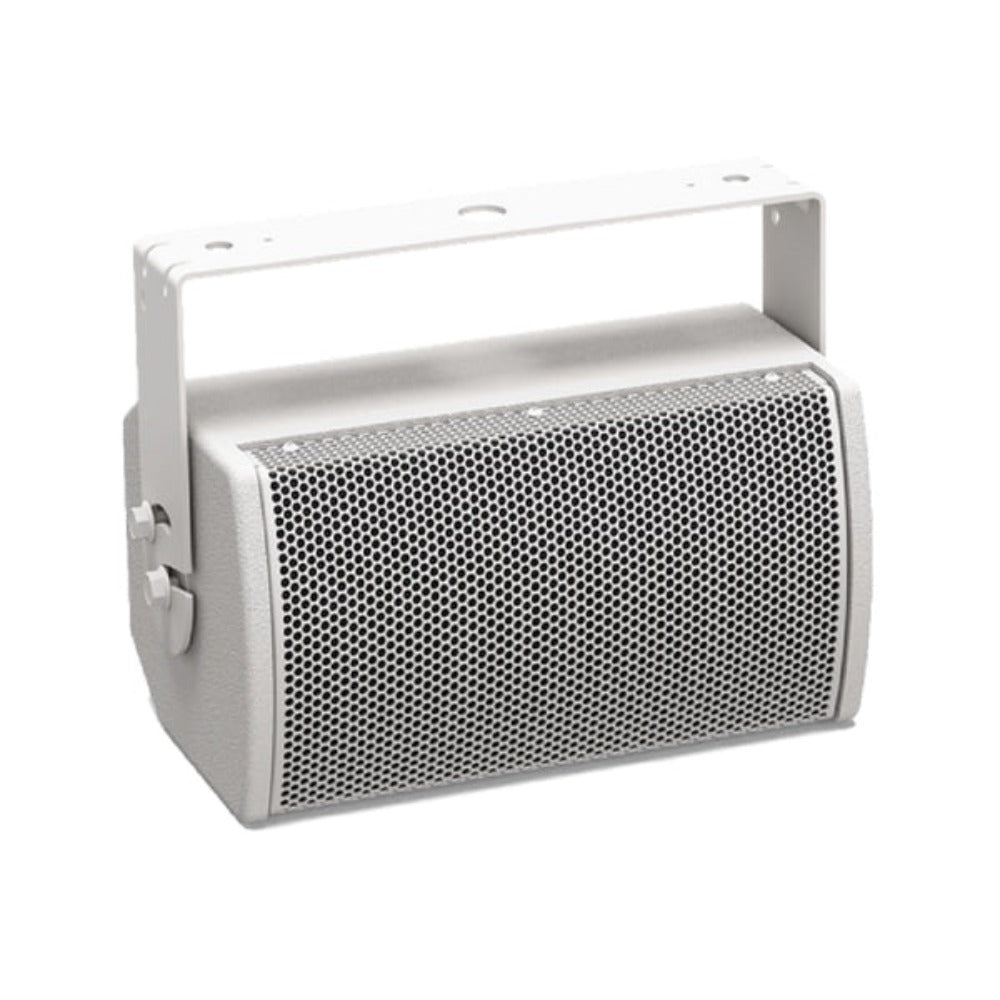

BOSE ArenaMatch Utility AMU105 Speaker
Experience exceptional audio performance in outdoor installations with the BOSE ArenaMatch Utility AMU105 Speaker. Featuring a wide frequency response, adjustable coverage pattern, and high-power handling, this speaker is designed to deliver clear and powerful sound in various outdoor applications.
| Frequency Response (-3 dB): | 1100 Hz to 16 kHz |
| Frequency Range (-10 dB): | 90 Hz to 18 kHz |
| Nominal Coverage Pattern (H × V): | 100° × 100° |
| Recommended High-pass Filter: | 90 Hz with minimum 12 dB/octave |
| Power Handling, long-term continuous: | 100 W |
| Power Handling, peak: | 400 W |
| Sensitivity (SPL / 1 W @ 1 m): | 92 dB SPL |
| Maximum SPL @ 1 m: | 112 dB SPL (peak: 118 dB SPL) |
| Nominal Impedance: | 8 Ω |
| Transducers: | 1 × Bose LF5 high-excursion 5.25-inch woofer (1.5-inch voice coil), 1 × Bose EMB2S extended high-frequency compression driver (2-inch voice coil) |
| Enclosure Material: | Exterior-grade plywood |
