Details
Highlights
- Wide Frequency Response: The BOSE Arenamatch AM10/80 Outdoor Loudspeaker offers a frequency response of -3 dB from 165 Hz to 16 kHz and a frequency range of -10 dB from 55 Hz to 18 kHz, providing excellent audio coverage for various applications.
- Adjustable Coverage Pattern: The loudspeaker comes in three variations with different nominal coverage patterns: 60° × 10° (AM10/60), 80° × 10° (AM10/80), or 100° × 10° (AM10/100), allowing flexibility in sound dispersion to suit different environments.
- High-Pass Filter: It is recommended to use a 60 Hz high-pass filter with a minimum 12 dB/octave to enhance the overall audio performance.
- Power Handling: The loudspeaker can handle different power levels depending on the configuration: 600 W long-term continuous (passive), 150 W HF/750 W LF (bi-amp), 1000 W long-term continuous (bi-amp), and peak power up to 3000 W (bi-amp).
- EN 54-24 Certified: The Arenamatch AM10/80 is certified for use in voice alarm systems for fire detection and fire alarm systems in buildings, ensuring compliance with safety regulations.

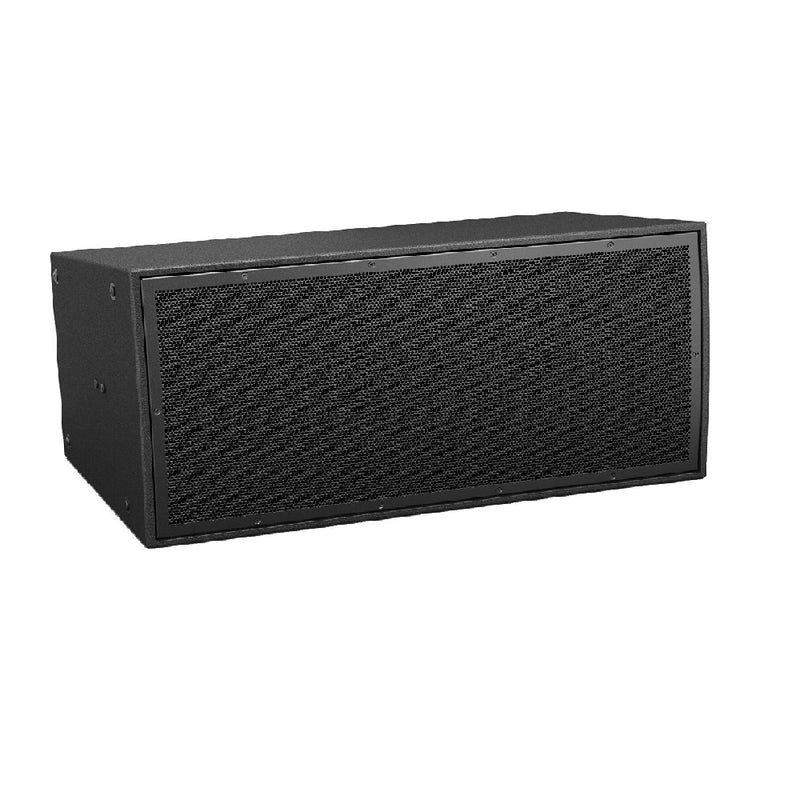

BOSE Arenamatch Outdoor Loudspeaker AM10/80
Experience superior outdoor audio with the BOSE Arenamatch AM10/80 Outdoor Loudspeaker. Designed for direct-exposure outdoor installations, this loudspeaker offers adjustable coverage patterns, high power handling, and EN 54-24 certification for voice alarm systems.
| Frequency Response (-3 dB): | 165 Hz to 16 kHz |
| Frequency Range (-10 dB): | 55 Hz to 18 kHz |
| Nominal Coverage Pattern (H × V): | 80° × 10° (AM10/80) |
| Recommended High-pass Filter: | 60 Hz with minimum 12 dB / octave |
| Power Handling, long-term continuous: | 600 W (passive), 750 W LF / 150 W HF (bi-amp), 1000 W LF / 250 W HF (bi-amp) |
| Power Handling, peak: | 2400 W (bi-amp), 3000 W LF / 1000 W HF (bi-amp), 5000 W LF / 1250 W HF (bi-amp) |
| Sensitivity (SPL / 1 W @ 1 m): | 107 dB SPL |
| Maximum SPL @ 1 m: | 129 dB SPL (135 dB SPL peak) |
| Nominal Impedance: | 8 Ω (passive/bi-amp) |
| Transducers: | 1 × Bose LF14 neodymium 14-inch woofer (4-inch voice coil), 6 × Bose EMB2S titanium-diaphragm, neodymium compression drivers (2-inch voice coil) |
| Enclosure Material: | Exterior-grade birch plywood |
