Details

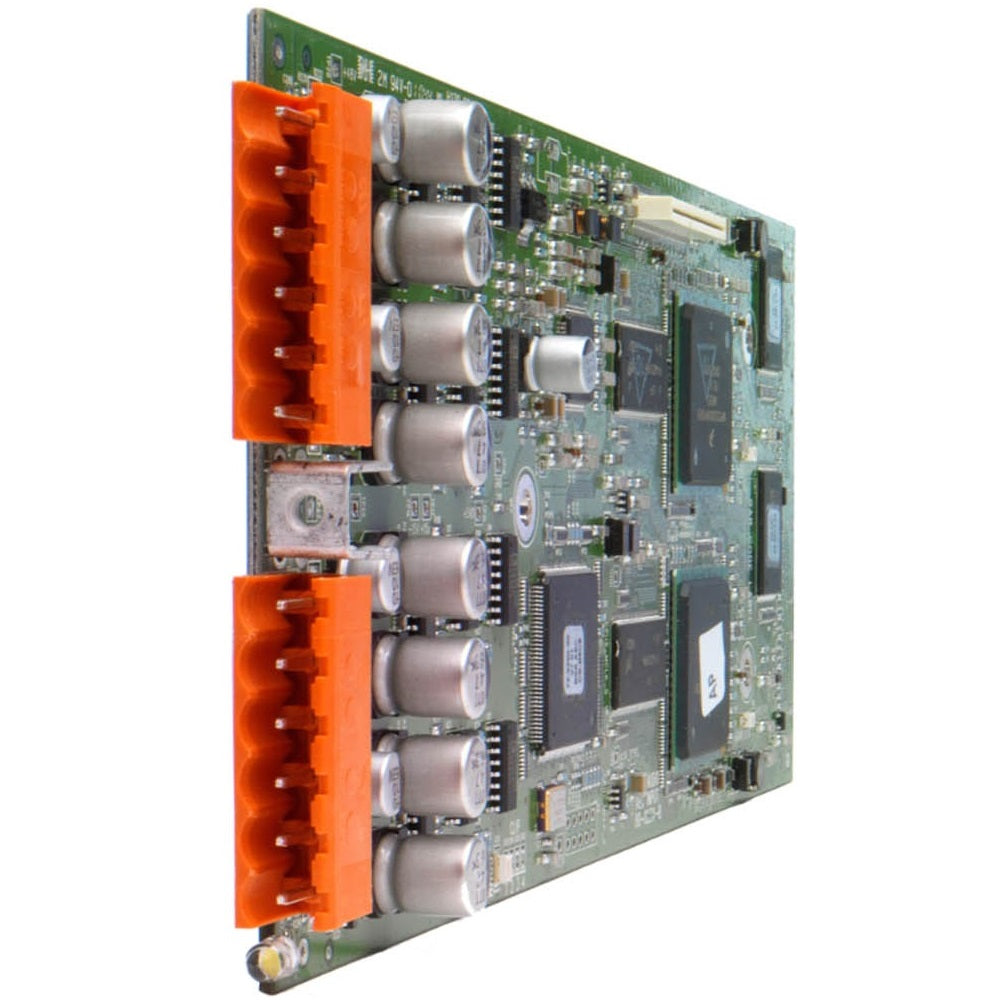

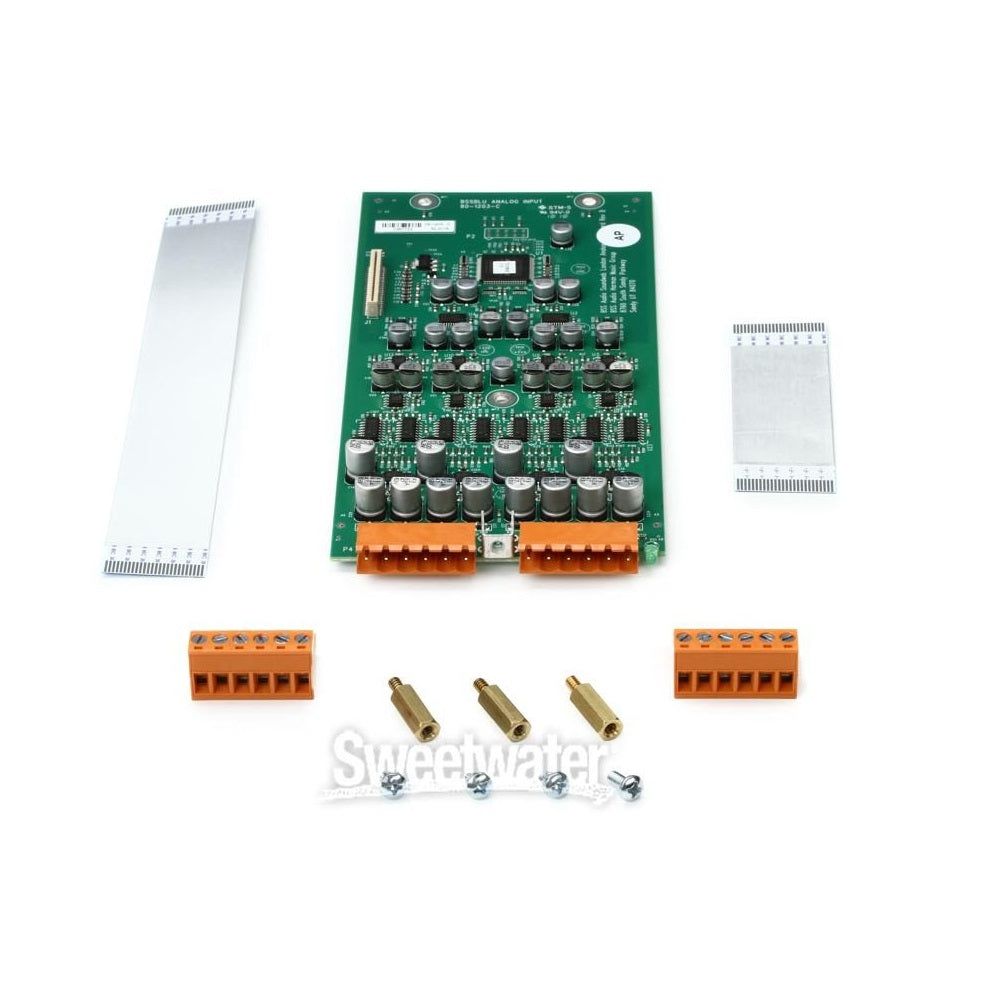

The Soundweb London Analog Input Card is designed to populate any of the four card slots on Soundweb London BLU-800, BLU-805, BLU-806, BLU-320, BLU-325, BLU-326, BLU-160, BLU-120, BLU-80, BLU-32 and BLU-16 devices. This analog card enables Soundweb London devices to receive microphone / line level signals.
Specifications
- Analog Inputs: Up to 4 electronically balanced on Phoenix/Combiconremovable screw connectors
- Mic/Line Inputs: Nominal gain 0dB, electronically switchable up to+48dB,in +6dB steps
- Input Impedance: 3.5kO
- Maximum Input Level: +20dBu with 0dB input gain,+8dBu with 12dB gain
- CMRR: >75dB at 1KHz
- Input Noise (E.I.N.):
- Phantom Power: 48V nominal, selectable per input
- A/D Latency: 38.7/Fs
