Details
Highlights
- Immersive Sound Coverage: The JBL Control HST offers a wide coverage angle of 180°H x 160°V, providing an immersive audio experience across a large area.
- Rich and Detailed Sound: Enjoy an extended frequency range from 50 Hz to 20 kHz, ensuring both deep bass and crisp highs for a well-balanced sound.
- High Power Handling: With a system power rating of up to 100 W (400 W peak), the Control HST delivers powerful audio performance suitable for various applications.
- Efficient Directivity: Featuring a Directivity Factor (Q) of 5.4 and Directivity Index (DI) of 7.2 dB (1 k – 16 kHz), the sound is focused and directed precisely.
- Flexible Transformer Taps: The transformer taps include 70V: 60W, 30W, 15W, 7.5W and 100V: 60W, 30W, 15W, offering versatile installation options.
- Robust Build: The on-wall design is built to last and withstand various environmental conditions.
- Wide Sensitivity Range: The Control HST boasts a sensitivity of 88 dB (Ave. 80 Hz – 20 kHz), ensuring efficient sound output at different power levels.
Immerse Yourself in Stunning Audio

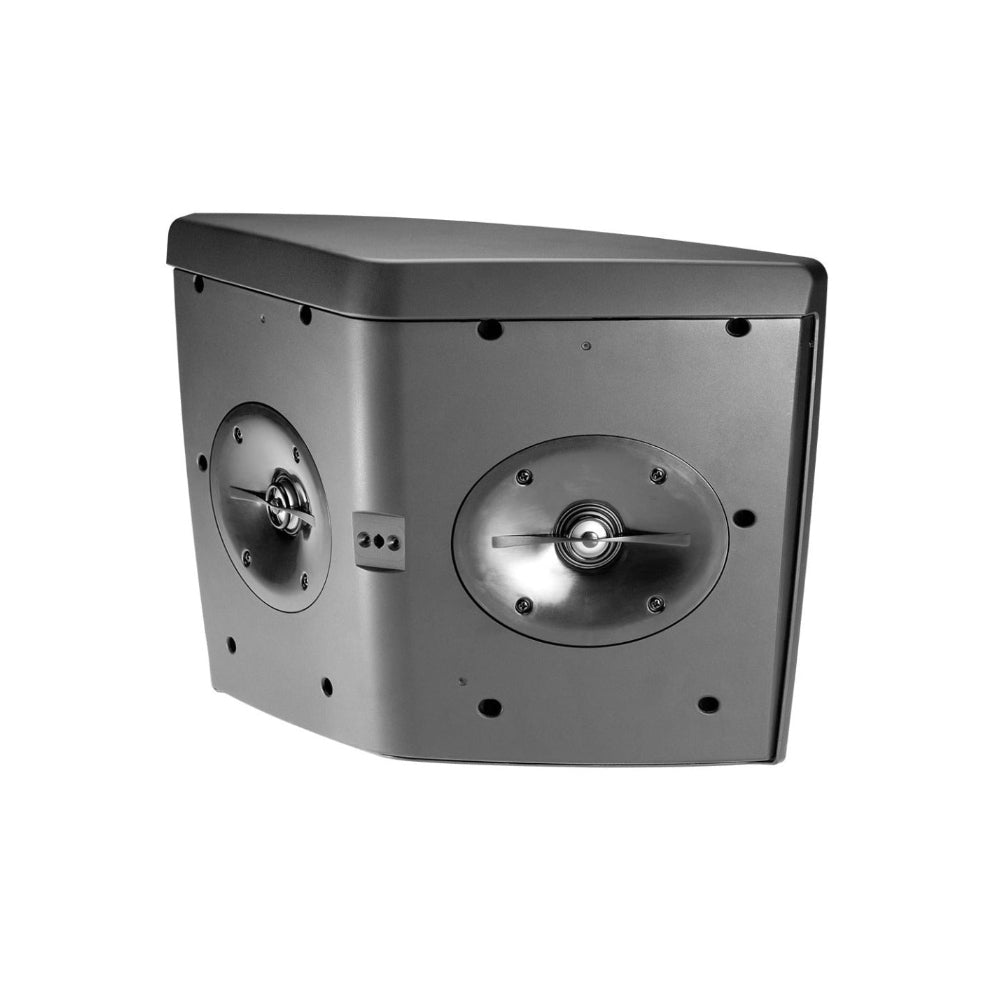

Experience unparalleled audio performance with the JBL Control Series On Wall Speaker Control HST. Designed to deliver exceptional sound coverage and clarity, this on-wall speaker is perfect for both indoor and outdoor installations. The wide coverage angle of 180°H x 160°V ensures that the sound reaches every corner of the space, providing an immersive listening experience for your audience.
Specifications
| Specification | Value |
|---|---|
| Frequency Range (-10dB) | 50 Hz – 20 kHz |
| Frequency Response (±3 dB) | 68 Hz – 18 kHz |
| Coverage Angle | 180°H x 160°V |
| Directivity Factor (Q) | 5.4 (1 k – 16 kHz) |
| Directivity Index (DI) | 7.2 dB (1 k – 16 kHz) |
| System Power Rating (IEC) | 100 W (400 W peak), 2 hrs. 75 W (300 W peak), 100 hrs. |
| Sensitivity | 88 dB (Ave. 80 Hz – 20 kHz) |
| Maximum SPL (1m) | Direct 8Ω: 108 dB (peaks of 114 dB) 60 W Tap: 97 dB @ 60W |
| Crossover Network | 1.6 kHz, 3rd order (18 dB/oct) high-pass to HF, 2nd order low-pass to LF |
| Impedance | 8 ohms |
| Transformer Taps | 70V: 60W, 30W, 15W, 7.5W 100V: 60W, 30W, 15W |
Discover the power of immersive sound with the JBL Control HST. Whether it's for background music, public address, or entertainment purposes, this on-wall speaker will impress your audience with its outstanding audio performance and reliable design.
