Highlights
- Premium Ceiling Speaker: The JBL Control 16C-VA White is a high-quality ceiling speaker that offers exceptional audio performance and coverage for various applications.
- Wide Frequency Range: Enjoy a frequency response of 62 Hz – 20 kHz (-10 dB) and 96 Hz – 15 kHz (±3 dB) for accurate and detailed sound reproduction.
- Powerful and Efficient: With a power rating of 100 Watts Continuous Program Power and 50 Watts Continuous Pink Noise (200W peak), this speaker ensures powerful and clear sound output.
- Adjustable Coverage Angle: The speaker provides a wide 110° conical coverage angle, delivering consistent sound distribution in the listening area.
- EN54 Certified: This speaker is EN54-24:2008 certified Type A, meeting stringent safety and performance standards for use in fire detection and alarm systems.
- Transformer Taps: The Control 16C-VA offers transformer taps of 30W, 15W, and 7.5W @ 70V or 100V, providing flexibility for various installations and power requirements.
- High Sensitivity: The speaker has a sensitivity of 91 dB (1kHz - 16 kHz), producing clear and intelligible sound even at lower power levels.
- Plenum Usage: The backcan is included, and the speaker is suitable for use in air handling spaces, meeting safety requirements.
- Durable Construction: The ABS baffle with UL94-V0 and UL94-5VB flame class fire rating and zinc-plated steel backcan ensure long-lasting performance and safety.
- Easy Installation: The speaker comes with a cardboard cutout template and optional accessories like high humidity grilles and new construction brackets, making installation hassle-free.

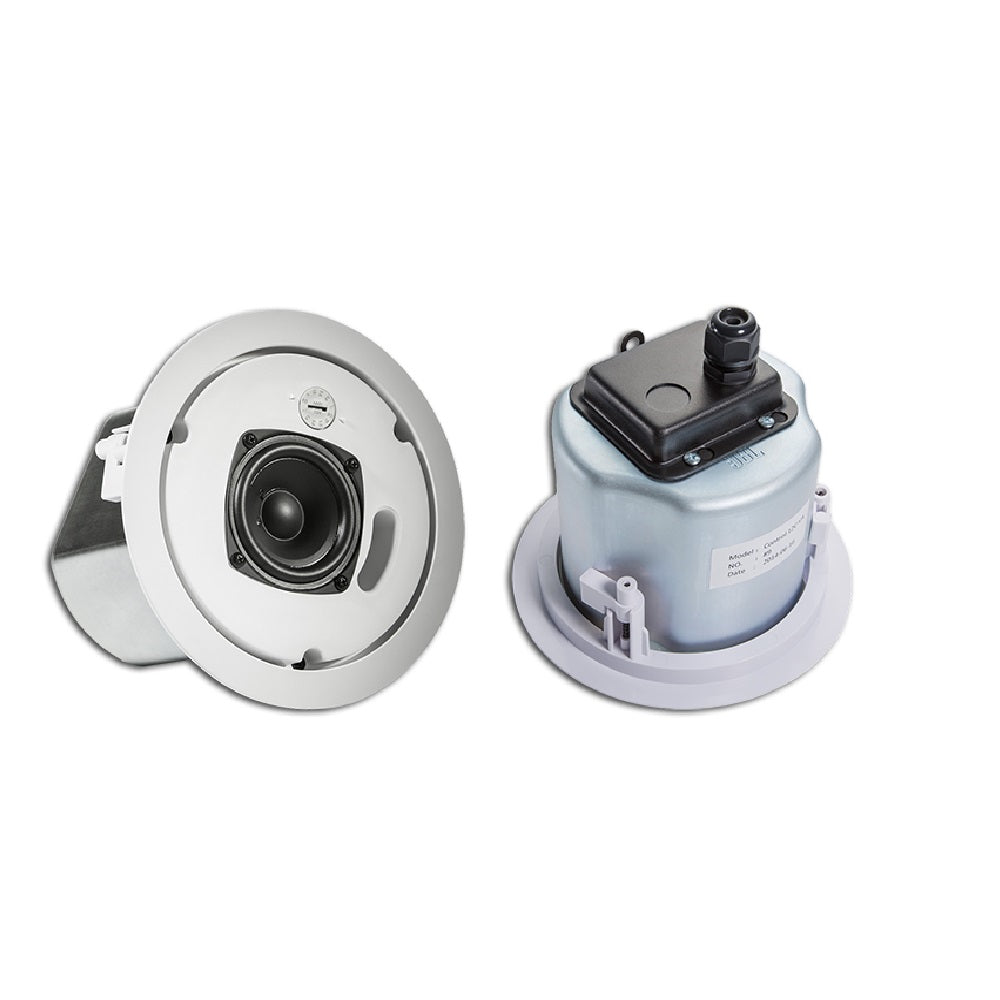

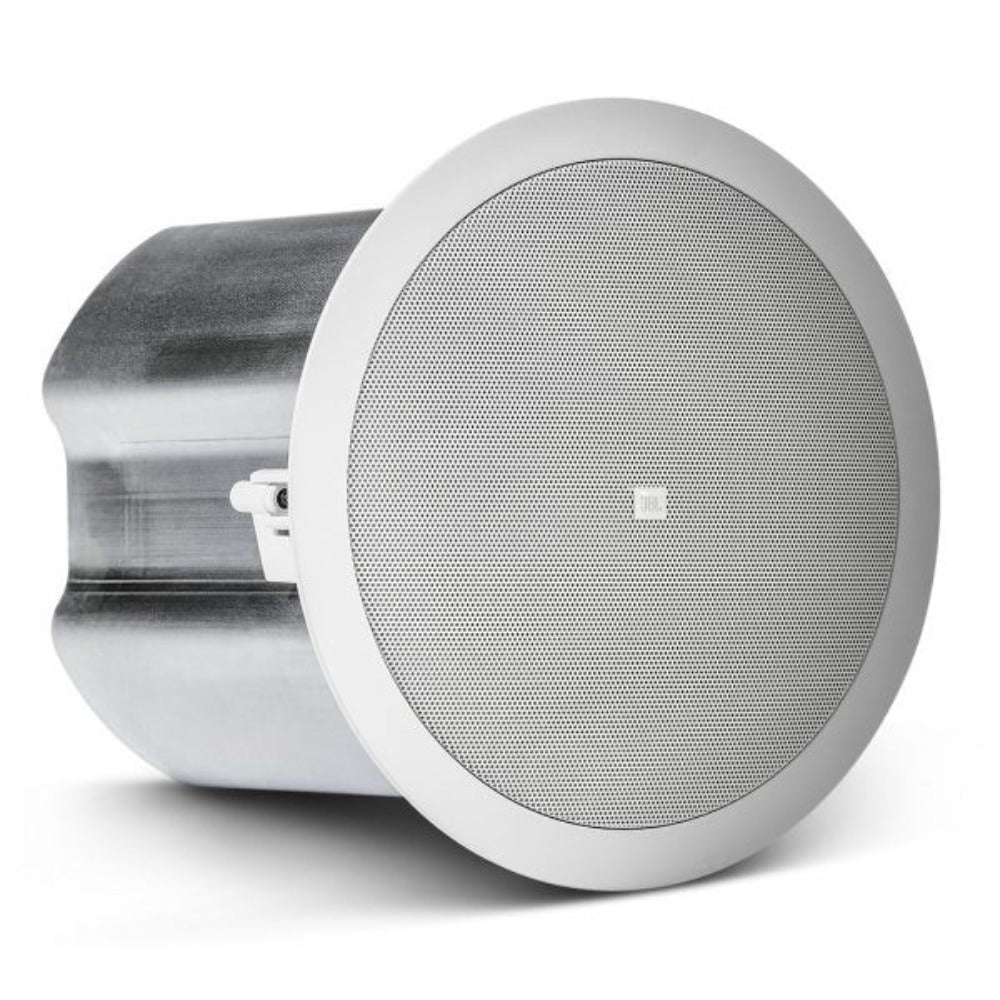

JBL Control 16C-VA White Ceiling Speaker
The JBL Control 16C-VA White is a versatile and reliable ceiling speaker designed to provide high-quality audio in commercial and public address systems. With its wide frequency range, powerful output, and EN54 certification, this speaker is an ideal choice for environments that demand clear and intelligible sound with enhanced coverage.
Specifications
| Frequency Range (-10 dB) | 62 Hz – 20 kHz |
| Frequency Response (±3 dB) | 96 Hz – 15 kHz |
| Power Rating | 100 Watts Continuous Program Power 50 Watts Continuous Pink Noise (200W peak) |
| Rated Noise Power | 30W (30W tap) |
| Rated Noise Voltage | 70V/100V (with 70V/100V tap settings) |
| Sensitivity | 91 dB (1kHz - 16 kHz) |
| EN54 Sensitivity (@ 4m) | 77 dB (per EN54-24 spectrum and measurement conditions at 4 meters.) |
| Coverage Angle | 110° conical |
| Directivity Factor (Q) | 7.8 |
| Directivity Index (DI) | 8.2 dB |
| Maximum SPL (1m) | 108 dB (low-impedance, 116 dB peak) 106 dB (top 70V/100 tap) EN54: 91 dB (4m, top 70/100V tap) |
| Impedance | 8 ohms (in direct/bypass 8 ohm setting); EN54 nominal impedance 7 ohms (based on min Z of 5.7 ohms at 11.2 kHz) 3.8W@70V; 7.5W@100V Tap: 1333Ω 7.5W@70V; 15W@100V Tap: 667Ω 15W@70V; 30W@100V Tap: 333Ω 30W@70V; N/C@100V Tap: 166Ω |
| Transformer Taps | 30W, 15W, 7.5W @ 70V or 100V (plus 3.8W @ 70V only) |
| Crossover Network | 12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver |
| Fuse | Thermal Fuse, open temperature 152 degrees C, Rating >= 10A @ 250VAC |
| Drivers | LF Driver: 165 mm (6.5 in) HF Driver: 19 mm (3/4 in) |

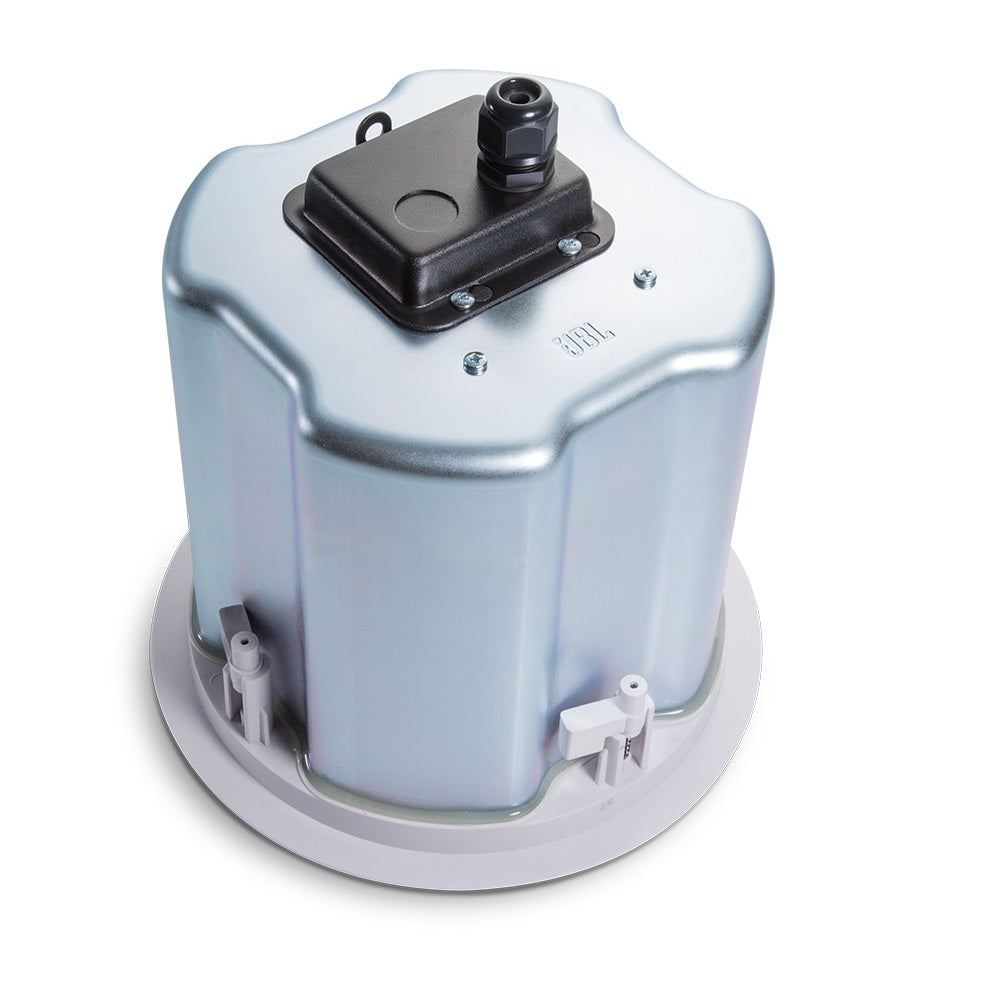

| Connections | Input +, Input -, Earth (connected to backcan). Ceramic with brass inserts (3.2 mm/0.126 in opening), accommodates 2.5 sq mm / 12 AWG wire |
