Details
Highlights
- Compact and Powerful: The Crown XLi800 is a two-channel power amplifier with 300W per channel at 8 ohms, delivering ample power for various audio applications in a compact form factor.
- High-Fidelity Sound: Experience clear and precise audio reproduction with the amplifier's wide frequency response (20 Hz - 20 kHz) and low distortion levels (<0.5% THD).
- Low Noise: Enjoy a noise-free audio experience, thanks to the amplifier's high signal-to-noise ratio (A-weighted >100 dB) and low crosstalk.
- Flexible Input Options: The XLi800 offers both 0.775V and 1.4V input sensitivity options, accommodating a variety of audio sources.
Overview

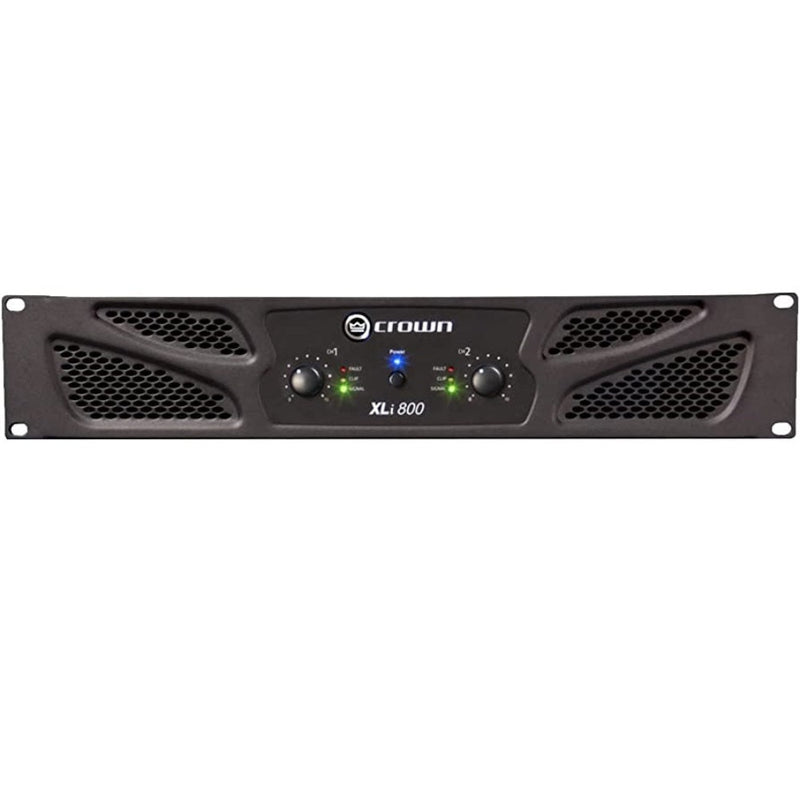

The Crown XLi800 is a high-quality two-channel power amplifier designed to deliver reliable and clean audio performance. With its compact size and powerful output, this amplifier is an excellent choice for powering speakers in small to medium-sized venues or home audio setups.
Specifications
| Frequency Response | 20 Hz - 20 kHz, +0/-1 dB (at 1 watt) |
| THD | <0.5%, 20 Hz - 20 kHz |
| Intermodulation Distortion | =/ <0.35% (60 Hz and 7 kHz at 4:1 from full rated output to -30 dB) |
| Slew Rate | >10V/us |
| Voltage Gain | 29 dB |
| Damping Factor | (8 ohms, 10 Hz to 400 Hz) >200 |
| Signal To Noise Ratio (A-weighted) | >100 dB |
| Crosstalk (below rated power) 20 Hz to 1 kHz | -75 dB, -59 dB |
| Input Sensitivity | (for full rated power at 8 ohms) 0.775V or 1.4V |
| Input Impedance (nominal balanced, unbalanced) | 20kΩ, 10kΩ |
| AC Line Voltage and Frequency Configurations Available | (+10%) 120V~60 Hz; 220V~50/60 Hz; 230-240V~50/60 Hz |
| Dimensions | 19" x 3.5" x 12.4" (48.3cm x 8.9cm x 31.5cm) |
| Weight | 25.1lbs (11.4kg) |
| IEC Power Connector | 15A |
The Crown XLi800 is a reliable and efficient power amplifier that meets the audio needs of various setups. Whether you're a musician, DJ, or audio enthusiast, this amplifier ensures a great listening experience with its clean and powerful performance.
